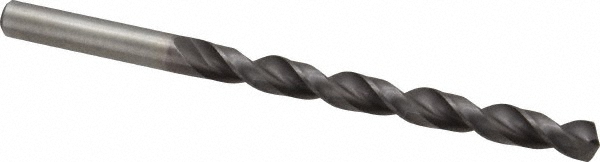

135 Wide Land Parabolic Jobber Length Drill Chicago-Latrobe 150WLP-TC TiCN HSS RHS/RHC Let-G

Chicago-Latrobe . 42177

Gallery

Attributes

Brand name, Manufacturer nameChicago-Latrobe
ManufacturerChicago-Latrobe Greenfield Greenfield Industries
CategoryId, CategoryIdL47778
CategoryIdL1, CategoryIdL22
CategoryIdL39553
CategoryL1Tools & Machining
CategoryL2Cutting Tools
CategoryL3Drill Bits
CategoryL4Jobber Length Drill Bits
DimensionUnitinch
GraingerSku434A89
Extra Product Name135 Wide Land Parabolic Jobber Length Drill Chicago-Latrobe 150WLP-TC TiCN HSS RHS/RHC Let-G
UPC662355421772
UnitOfMeasureEA
Weight0.05 0.5
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height, width0.47
jsonUrlData924526ffbdad25e5923b
length1.97
moq, multiple, tierMinQty11
MPN, Keyword, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpns42177
qtyInStock16
qtyInStockOverride-2
SKUG2820288
tierPrice112.00
urlhttps://www.zoro.com/chicago-latrobe-135-wide-land-parabolic-jobber-length-drill-chicago-latrobe-150wlp-tc-ticn-hss-rhsrhc-let-g-42177/i/G2820288/
Drill Bit Dimension TypeLetter
Drill Bit Size, SizeG
Shank Dia1/4 in
Overall Length4 1/8 in
Flute Length2 7/8 in
Maximum Drilling Depth2 5/32 in
Depth x Dia Ratio, Depth:Dia Ratio8xD
Shank Length1 1/4 in
Diameter, Shank Size0.261
Drill Diameter Tolerance+0.0000 in/-0.0010 in
Drill Point Length0.0000 in
Drill Length ClassJobber Length
Drill Bit GroupingDrill Bit
ItemJobber Length Drill Bit
Shank TypeStraight
Drill Bit Point Angle135 Degrees
Drill Bit MaterialHigh Speed Steel
Drill Bit FinishTiCN
Decimal Equivalent0.2610
MaterialHigh Speed Steel Alloy Steel Carbon Steel
Flute TypeSpiral
Point Angle135
AsinB004MYGXCY B09TJQ518G
BrandChicago Latrobe
Bullet_pointHigh-speed steel (HSS) provides hardness for wear resistance Made in the USA Parabolic jobber length drill bit has a long reach for deep drilling applications Self-centering 135-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge Titanium carbon nitride (TiCN) coating is harder than TiN for better wear resistance and is recommended when drilling ferrous and nonferrous materials Wide parabolic flutes increase coolant flow and chip evacuation, and are stronger and more rigid than standard parabolic flutes for deep drilling in difficult-to-machine materials
ClassificationId256275011 6001488011
CurrencyUSD
Cutting_angle_string135.0
DisplayNameCombination Drill & Taps Jobber Drill Bits
Finish_typeTitanium Carbon Nitride
Height0.399999999592 1.016 1267 13 1484 289 372 379 43 494 500 600 74 75 85 86
Identifier00662355421772 0662355421772 662355421772
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameChicago Latrobe 150WLPN High-Speed Steel Jobber Length Drill Bit, TiCN Coated, Round Shank, Wide Parabolic Flute, 135 Degree Notched Point, Letter Size G (Pack of 12) Chicago-Latrobe 42177 150WLP-TC Jobber Length Drill Bit, G Drill - Letter, 0.261 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN Coated (Each)
Item_package_quantity, Number_of_items, PackageQuantity1 12
Item_package_weight0.5
Item_type_keywordcombination-drill-and-taps jobber-drill-bits
Length15.24 5.99999999388
Linkhttps://m.media-amazon.com/images/I/315pF-Ls6RL._SL75_.jpg https://m.media-amazon.com/images/I/315pF-Ls6RL.jpg https://m.media-amazon.com/images/I/31SERxDTw6L._SL75_.jpg https://m.media-amazon.com/images/I/31SERxDTw6L.jpg https://m.media-amazon.com/images/I/31nn+e0MvZL._SL75_.jpg https://m.media-amazon.com/images/I/31nn+e0MvZL.jpg https://m.media-amazon.com/images/I/31tCxCRslbL._SL75_.jpg https://m.media-amazon.com/images/I/31tCxCRslbL.jpg https://m.media-amazon.com/images/I/4193zdzArXL._SL75_.jpg https://m.media-amazon.com/images/I/4193zdzArXL.jpg https://m.media-amazon.com/images/I/41u4Lo8tO+L._SL75_.jpg https://m.media-amazon.com/images/I/41u4Lo8tO+L.jpg https://m.media-amazon.com/images/I/61SyK3MEHjL.jpg https://m.media-amazon.com/images/I/71OcNbwDu6L.jpg https://m.media-amazon.com/images/I/71YNSycAzdL.jpg https://m.media-amazon.com/images/I/71tsJo6pTLL.jpg https://www.amazon.com/gp/bestsellers/hi https://www.amazon.com/gp/bestsellers/hi/256275011
List_price213.72
Mfg_series_number150WLPN
ParentAsinsB006O2RWJU
ProductTypeDRILL_BITS
Product_descriptionChicago-Latrobe Jobber Length Drill Bit, Series: 150WLP-TC, Imperial, G Drill - Letter, 0.261 in Drill - Decimal Inch, 4-1/8 in Overall Length, 7XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 2-7/8 in Flute Length, 0.261 in Dia x 1.25 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiCN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Free Machining Steel and Tool Steel
Product_site_launch_date2011-02-09T00:00:01-08:00 2023-11-23T10:48:34.235Z
Rank1329768 4022
String_value2-7/8
Surface_recommendationAlloy Steel
TitleJobber Drill Bits Tools & Home Improvement
TypeCount Parabolic Round Straight VARIATION ean gtin upc
Unitcentimeters degrees inches pounds
Unit_count1.0 12.0
VariantMAIN PT01 PT02 PT03 PT04
WebsiteDisplayGroupbiss_basic_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width10.16 1220 1501 2165 2218 3.99999999592 481 500 600 72 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG282028811611 @ $12.00
Megadepot4217711
Guardian837184601-211 @ $22.36
heavydutydepot.com42177111 @ $10.36
usmegastore.com421771Contact Us11 @ $10.44
National Supply Network8371846012-2121 @ $19.08

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Chicago Latrobe 150WLPN High-Speed Steel Jobber Length Drill Bit, TiCN Coated, Round Shank, Wide Parabolic Flute, 135 Degree Notched Point, Letter Size G (Pack of 12)
Brand: Chicago Latrobe
Details
  • Parabolic jobber length drill bit has a long reach for deep drilling applications
  • High-speed steel (HSS) provides hardness for wear resistance
  • Titanium carbon nitride (TiCN) coating is harder than TiN for better wear resistance and is recommended when drilling ferrous and nonferrous materials
  • Self-centering 135-degree notched point penetrates material without a pilot hole more easily than a conventional point, and maintains a sharp cutting edge
  • Wide parabolic flutes increase coolant flow and chip evacuation, and are stronger and more rigid than standard parabolic flutes for deep drilling in difficult-to-machine materials
  • Made in the USA
View on Amazon (paid link)
Chicago-Latrobe 42177 150WLP-TC Jobber Length Drill Bit, G Drill - Letter, 0.261 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN Coated (Each)
Brand: Chicago Latrobe
Chicago-Latrobe Jobber Length Drill Bit, Series: 150WLP-TC, Imperial, G Drill - Letter, 0.261 in Drill - Decimal Inch, 4-1/8 in Overall Length, 7XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 2-7/8 in Flute Length, 0.261 in Dia x 1.25 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiCN Coated, Applicable Materials: Alloy Steel, Carbon Steel, Free Machining Steel and Tool Steel
