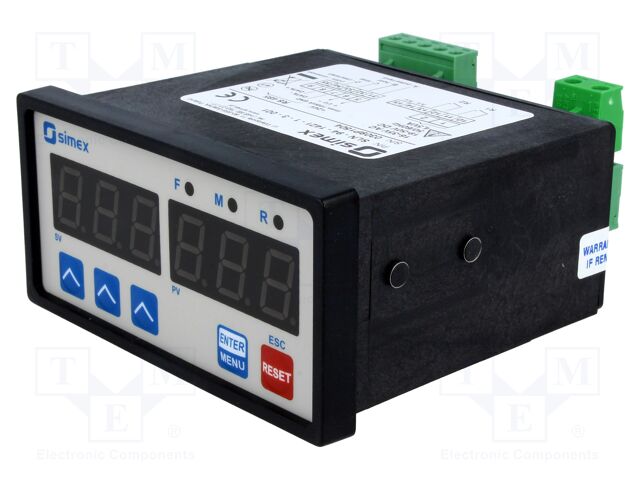

SIMEX SLN-94-1421-1-3 | Counter: electronical; LED x2; pulses; 999; supply; IP65; 19?50VDC

SIMEX . SLN-94-1421-1-3

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSIMEX
CategoryL1Automation
CategoryL2Regulation and Control
CategoryL3Counters
CategoryL4Impulse Counters
DimensionUnitmm
Extra Product NameSIMEX SLN-94-1421-1-3 | Counter: electronical; LED x2; pulses; 999; supply; IP65; 19?50VDC
atoms, moq, multiple1
diameter, length, width90.5
height13.0
height_AttribDisplay height 1
jsonUrlData3829c44c4e7b90e8ec0c013e7bf4bf3b.
jsonUrlData23e362f0c62eefaadac38
keywordsSIMEX, SLN-94-1421-1-3, SX-SLN-94/24VDC, Automation, Regulation and Control, Counters, Impulse Counters
length_Attrib, width_AttribMounting hole diameter
MPNSLN-94-1421-1-3
qtyInStock2
SKUSX-SLN-94/24VDC
snippetSIMEX SLN-94-1421-1-3 | Counter: electronical; LED x2; pulses; 999; supply; IP65; 19?50VD
Type of counterelectronical
Kind of display usedLED x2
Type of counted signalpulses
Counting range999
Resetting methodelectrical,
Kind of output 1supply
Output 1 electrical parameters24V DC / 100mA
Kind of output 2, Kind of output 3SPST-NO
Output 2 electrical parameters, Output 3 electrical parameters250V AC / 1A
IP ratingIP65
Kind of input 1contact,
Electrical input 1 parametershigh level: 10...30V,
Max IN1 counting frequency10kHz
Operating temperature0...50?C
Body dimensions96x48x92mm
Display height 1, Display 2 height13mm
Mounting hole diameter90.5x43mm
Electrical connectionscrew terminals
Mountingon panel
Kind of counterprogressive/reversing,
The additional control inputsRESET,
