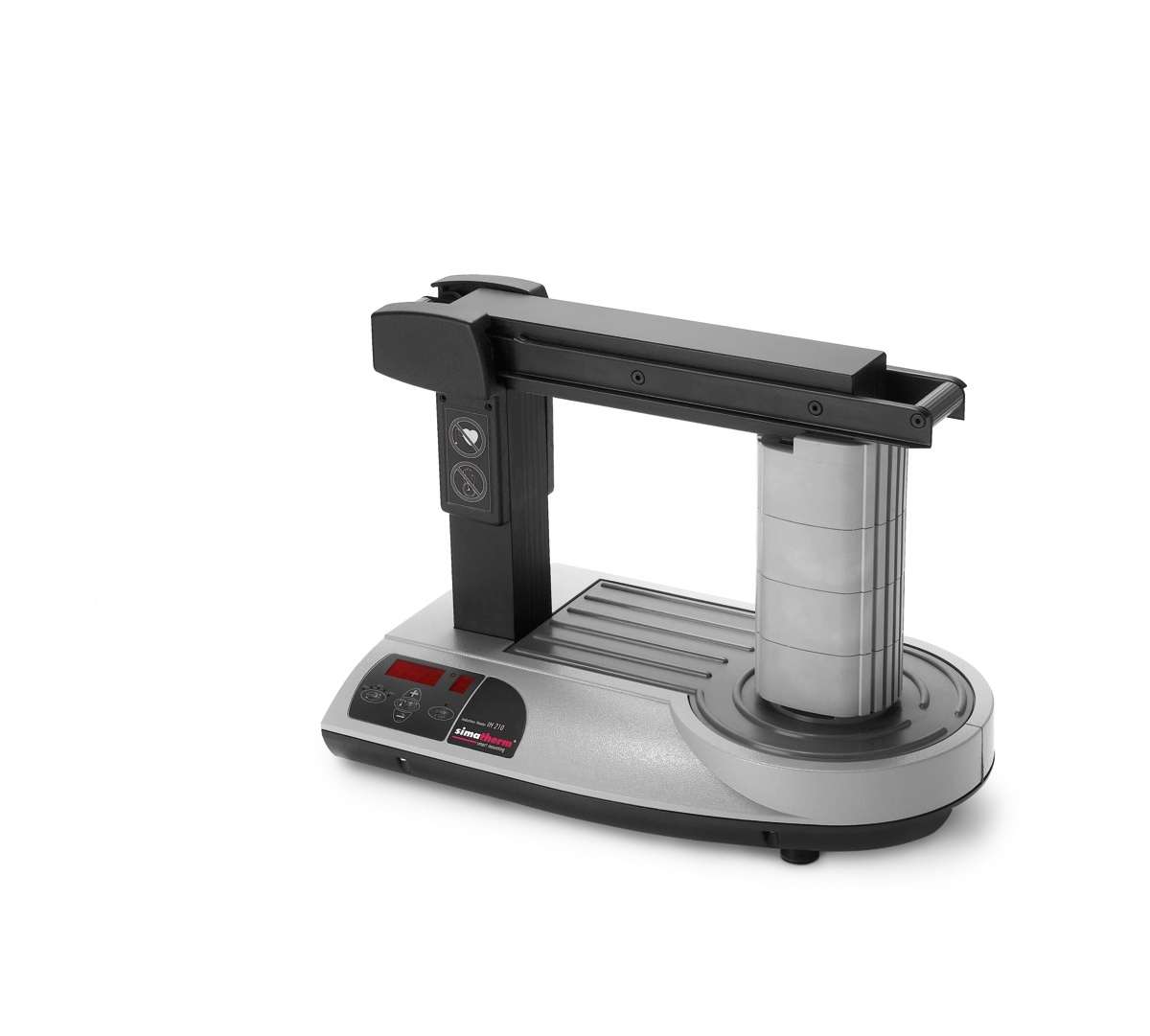

Induction Heater IH 210 - Simatec - Bearing Heater

Simatec . IH 210

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSimatec
DimensionUnitmm
InStockStringTrue
Extra Product NameInduction Heater IH 210 - Simatec - Bearing Heater
Voltage, voltage400?480 V
Weight300
WeightUnitkg
Weight_Attrib, length_Attrib, width_Attribmax. weight of rolling bearing bore diameter
diameter, length, width300.0
keywordsIH 210, Bearing Handling Tool, Distributor, Supplier, Designer, authorized, Simatool, Simatec, Bearing Heaters, Simatherm
moq, multiple, tierMinQty11
MPNIH 210
overrideTierPrice10, power10?11.5 kVA
qtyInStock-2
qtySourceInStockString
SKU6524
tierPrice18161.00
standard yokes70 ? 70 ? 420 mm for bearings with a bore diameter of at least 100 mm
dimensions lxwxh650 ? 350 ? 420 mm
coil diameter135 mm
size of operating area wxh250 ? 250 mm Optional: 250 ? 376 mm (Art. 110.1504)
variable power level5 levels: 20?40?60?80?100%
temperature range magnetic probe accuracy electronic20?250 ?C Yes, type K ? 3 ?C
maximum temperature approx400 ?C
range of time control time setting in steps0?60 minutes
max weight of rolling bearing bore diameter300 kg 60?640 mm
max amperage25 A
frequency50?60 Hz
core cross section70 ? 70 mm
cooling fanOptional (Art.110.1505)
designationIH 210/400 V (Art. 110.1501)
number of standard yokes2
movable yokeSliding yoke

Distributor offers

SellerSKUMOQIn stockMultiplePrices
HVH65241-211 @ $8161.00
