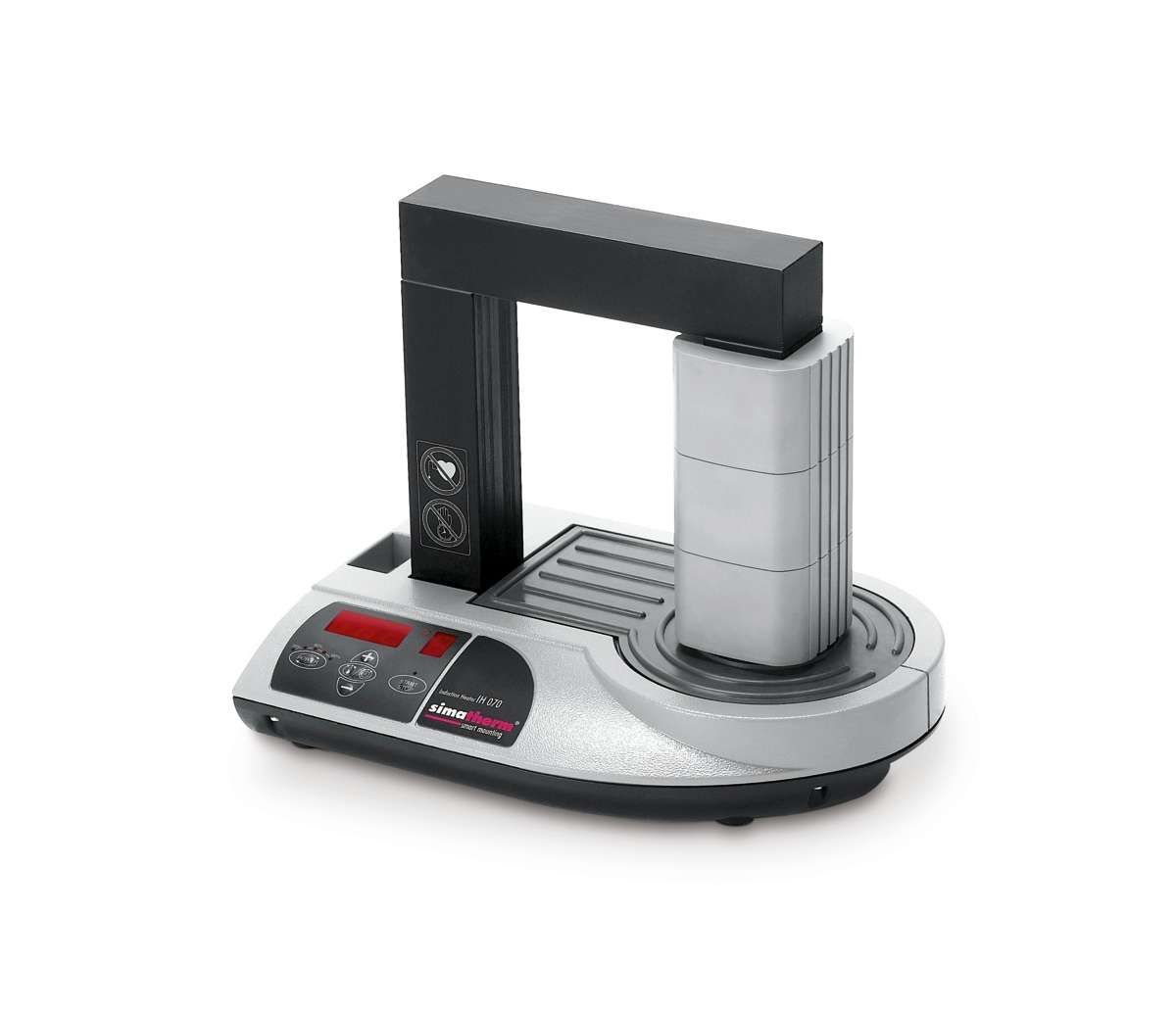

Simatherm - Induction Heater IH 070 - Simatec - Bearing Heater

Simatec . IH 070

Gallery

Attributes

Brand name, Manufacturer name, BrandSimatec
ManufacturerSimatec simatec AG
DimensionUnitmm
InStockStringTrue
Extra Product NameSimatherm - Induction Heater IH 070 - Simatec - Bearing Heater
Voltage, voltage110?120 V
Weight120 105
WeightUnitkg
Weight_Attrib, length_Attrib, width_Attribmax. weight of rolling bearing bore diameter
diameter, length, width120.0
keywordsIH 070,Bearing Handling Tool, Distributor, Supplier, Designer, authorized, Simatool, Simatec, Bearing Heaters, Simatherm
moq, multiple, tierMinQty1, Item_package_quantity, Number_of_heating_elements, Number_of_items, PackageQuantity1
MPN, Keyword, ModelNumber, Model_number, Mpns, PartNumber, Part_numberIH 070
overrideTierPrice10, variable power level5 levels: 20?40?60?80?100%
qtyInStock-2
qtySourceInStockString
SKU6522
snippetThe Simatherm?IH 070 is intended to heat small and medium-sized workpieces. The IH 070 is an induction heater from Simatec. The heating device uses induction as a heating method for bearings.
tierPrice14189.00
dimensions lxwxh420 ? 280 ? 345 mm
range of time control time setting in steps0.1 minutes
core cross section55 ? 55 mm
coil diameter115 mm
size of operating area wxh145 ? 205 mm
number of standard yokes3
standard yokes28 ? 28 ? 275 mm for bearings with a bore diameter of at least 40 mm
designationIH 070/115 V (Art. 110.1302)
max amperage20 A
frequency50?60 Hz
max weight of rolling bearing bore diameter120 kg 20?400 mm
power2.2?2.4 kVA
maximum temperature approx400 ?C
temperature range magnetic probe accuracy electronic20?250 ?C Yes, type K ? 3 ?C
movable yokeOptional (swivel arm), Art.190.1302
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
AsinB01IVYQVEK
Bullet_pointAlso included: 3 yoke, 1 temperature probe, 1 pair of protective Gloves Available for voltages of 110–120 V and 240 V For workpieces weighing up to 120 kg (260 lb) For workpieces with inner diameter of 20 to 400 mm Swivel arm available as an option
ClassificationId16411251
CurrencyUSD
DisplayNameRoller Bearings
Heating_element_typeRadiant
Height16 20.0 483 72 965
Included_components1 heater, 3 yokes, 1 temperature probe, 1 pair of protective gloves, 1 instruction manual
ItemClassificationBASE_PRODUCT
ItemName, Item_nameSimatec IH 070 Simatherm Induction Heater, 16" ID, 8" Width
Item_package_weight105.0
Item_type_keywordroller-bearings
Length21 21.0
Linkhttps://m.media-amazon.com/images/I/41w8NioMoZL._SL75_.jpg https://m.media-amazon.com/images/I/41w8NioMoZL.jpg https://m.media-amazon.com/images/I/51zqI0-rEAL.jpg
List_price4250.0
MaterialMetal
Power_source_typeinduction
ProductTypeCOUNTERTOP_BURNER
Product_site_launch_date2016-07-22T08:00:01.000Z
ReleaseDate2017-03-12
Street_date2017-03-12T00:00:01Z
StrippedMpnsIH070
TypeEach
Unitinches pounds
Unit_count1.0
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1000 16.0 20 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
HVH65221-211 @ $4189.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Simatec IH 070 Simatherm Induction Heater, 16" ID, 8" Width
Brand: Simatec
Details
  • For workpieces weighing up to 120 kg (260 lb)
  • For workpieces with inner diameter of 20 to 400 mm
  • Also included: 3 yoke, 1 temperature probe, 1 pair of protective Gloves
  • Available for voltages of 110–120 V and 240 V
  • Swivel arm available as an option
