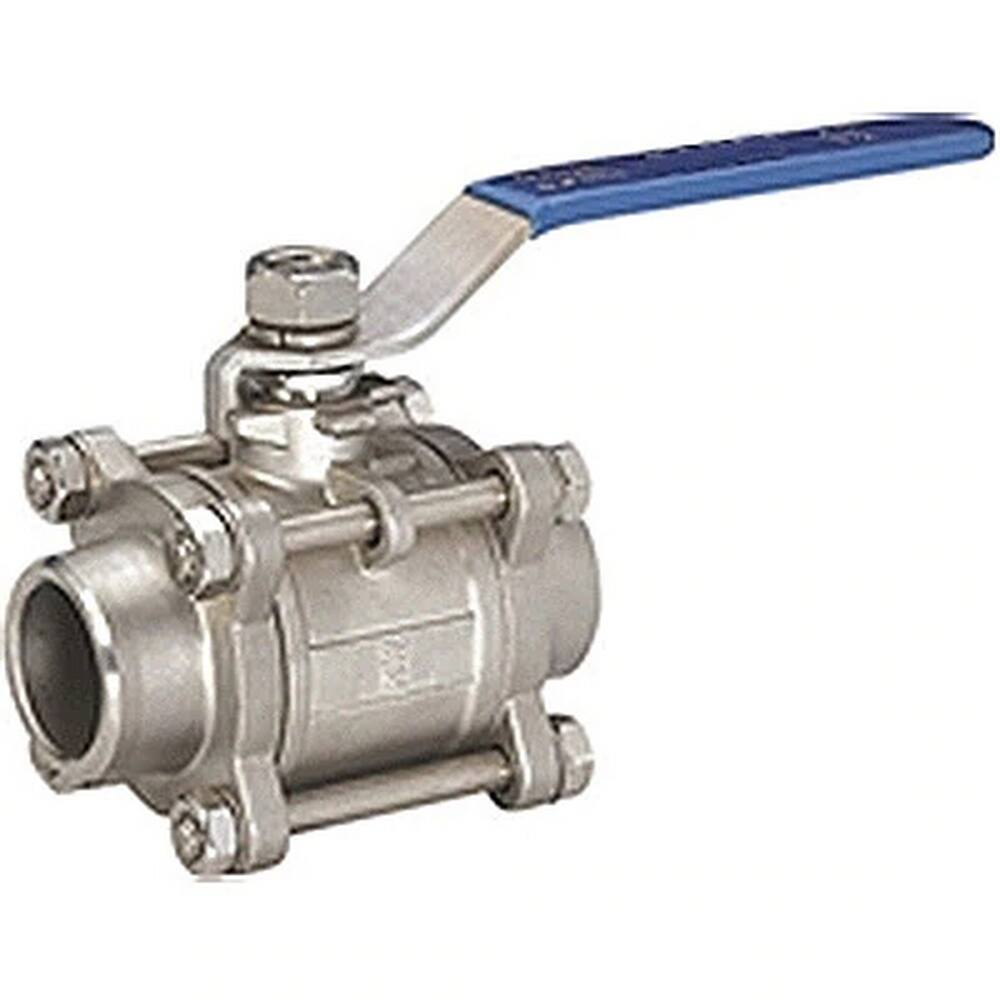

Inline Ball Valve . 302F-F6366-MMSS-2S

Inline Ball Valve . 302F-F6366-MMSS-2S

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInline Ball Valve
DimensionUnitinch
Weight27.4
Weight_AttribWeight
length7.4
length_AttribLength
moq, multiple1
MPN302F-F6366-MMSS-2S
qtyInStockCall for Availability
SKU7570786
ANSI SpecificationsANSI B16.34
API SpecificationsAPI 598
ASME SpecificationsASME B16.11, ASME B16.34
ASTM SpecificationsASTM A-351 Grade CF8M
Clean Bagged, FM Approved, IAPMO Listed, NSF Certified, UL ListedNo
Collection302F Series
End Connection 1, End Connection 2, End ConnectionsSocket Weld
Handle Material304 Stainless Steel
ISO SpecificationsISO 15156
Length7-2/5 in
MaterialStainless Steel
Material Type316
Maximum Temperature450
Minimum Temperature-40
OriginDomestic
Pressure Class800#
Recommended Valve ApplicationGas, Industrial, Oil, Water
Valve Body Style3 piece
Valve OperatorLocking Lever Handle
Valve Port OpeningFull Port
Valve Seat MaterialTFM
Valve Size3 in
Valve StemBlowout-proof
Valve TypeBall Valve

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ferguson.com75707861Call for Availability1
