DFRobot . TEL0124
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1738-TEL0124-ND | 1 | 1 | 1 @ $69.69 | |
| Digi-Key | 10055687 | 1 | 1 | 1 @ $82.80 | |
| 426-TEL0124 | 1 | 112 | 1 | 1 @ $69.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
SIM7600CE-T 4G(LTE) GPS GSM Shield with Antenna - a 4G/3G/2G Communication and GNSS Positioning Module
Brand: DFROBOT
<b>DFRobot SIM7600CE-T 4G(LTE) Shield </b><br><br><b>Introduction</b><br>SIM7600CE-T 4G(LTE) Shield is a multi-functional board which supports GNSS positioning, GPRS, TD-SCDMA, EDGE, SMS, LTE, SPS satellite, 4G/3G/2G communication, SMS and data transmission. <br><br><b>Features</b><br>Support Multi-frequency Communication<br>GNSS Positioning<br>Standard Interface <br><br><b>Specification</b><br>USB Voltage: 5V<br>Operating Voltage: 5V<br>Input Voltage: VIN(7-23V)/USB(5V)<br>4G Communication Rate: uplink rate 50 Mbps, downlink rate 150 Mbps<br>Support AT Command Control: 3GPP TS 27.007,27.005 and SIM7500_SIM7600 Series_AT Command<br>Support GNSS Positioning<br>Support Low Power Consumption: 20mA@7V-Flight Mode<br>Support LED Status Display: display the power supply status, network connection and operating mode<br>Operating Temperature: -40℃ ~85℃ <br>Size: 69*54mm/2.72*2.13inch<br><br><b>Support Network:</b><br>TDD-LTE B38/B39/B40/B41<br>FDD-LTE B1/B3/B8<br>TD-SCDMA B34/B39<br>WCDMA/HSDPA/HSPA+ B1/B8<br>CDMA 1X/EVDO BC0<br>GSM/GPRS/EDGE 900/1800 MHz<br><br><b>Shipping list</b>1 x [TEL0124]SIM7600CE-T 4G(LTE) Shield(V1.0)<br>1 x GPS Antenna<br>1 x 4G LTF Antenna
Details

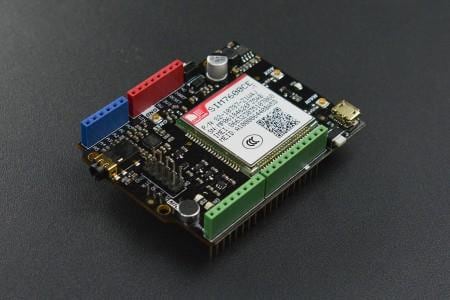

- SIM7600CE-T 4G(LTE) Shield is a 4G/3G/2G communication and GNSS positioning module. This shield is as small as a credit card and compatible with controller boards like Leonardo, Mega etc.
- The frequency bands that SIM7600CE-T 4G(LTE) Shield supports are LTE-TDD/ LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE. It also supports LTE-CAT4(with uplink rate 50 Mbps and downlink rate 150 Mbps).
- With stable performance, this small cost-effective expansion shield can realize SMS and data transmission in a pretty low power consumption.
- Besides, it adopts the latest SIM7600CE module. Compared with other GSM/GPRS/GPS modules on the market, this module is well advanced in stable performance and powerful function such as 4G communication and accurate GNSS positioning.
Listing
| Binding | Electronics |
|---|---|
| Product group | PC Accessory |
| Product type | NETWORKING_DEVICE |
| Model | TEL0124 |
| Part number | TEL0124 |
| Label | DFROBOT |
| Manufacturer | DFROBOT |
