Fermion: Multifunctional Environmental Sensor (breakout) - SEN0500
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 426-SEN0500 | 1 | 14 | 1 | 1 @ $24.90 | |
| DF-SEN0500 | 1 | 1 | 1 | ||
 Digi-Key | 18069277 | 1 | 59 | 1 | 1 @ $29.88 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Fermion: High Accuracy Temperature & Humidity(SHTC3), Pressure(BMP280), Ambient Light(VEML7700) and UV(ML8511) Sensor(Breakout, I2C/UART)
Brand: DFROBOT
<b>Application</b> <br> Home indoor and outdoor environment detection system<br> Environmental monitoring work<br><br> <b>Specification</b><br> Working Voltage: 3.3V DC<br> Working Current: 35mA<br> Output Signal: I2C, UART<br> Working Temperature: -20~70℃<br> Size: 30mm×20.5mm/1.18×0.81"<br> Barometric Pressure Sensor<br> Barometric Pressure Unit Relationship: 1000pa = 10hpa = 1kpa<br> Sensor Chip Model: BMP280<br> Barometric Pressure Measurement Range: 3000~1100 hPa<br> Relative Accuracy Of barometric Pressure: ±0.12 hPa<br> Absolute barometric Pressure Accuracy: ±1 hPa<br><br> Temperature & Humidity Sensor<br> Sensor Chip Model: SHT-C3<br> Relative Humidity Accuracy: ±2%RH<br> Relative Humidity Resolution: 0.01%RH<br> Relative Humidity Measurement Range: 0~100<br> Temperature Accuracy: ±0.2℃<br> Temperature Resolution: 0.01℃<br> Temperature Measurement Range: -40~125℃<br><br> UV Sensor<br> Sensor Chip Model: ML8511<br> Ultraviolet Sensitive Wavelength UV-A (320-400nm), UV-B (280-320nm)<br> Ultraviolet Output Unit: mW/㎡<br><br> Ambient Light Sensor<br> Sensor Chip Model: VEML7700<br> Ambient Light Accuracy: 0.0036 lx/ct<br> Ambient Light Range: 0~120 klx<br><br> <b>Shipping List</b><br> Fermion: Temperature & Humidity(SHTC3), Pressure(BMP280), Ambient Light(VEML7700) and UV(ML8511) Sensor(Breakout) x1<br>
Details

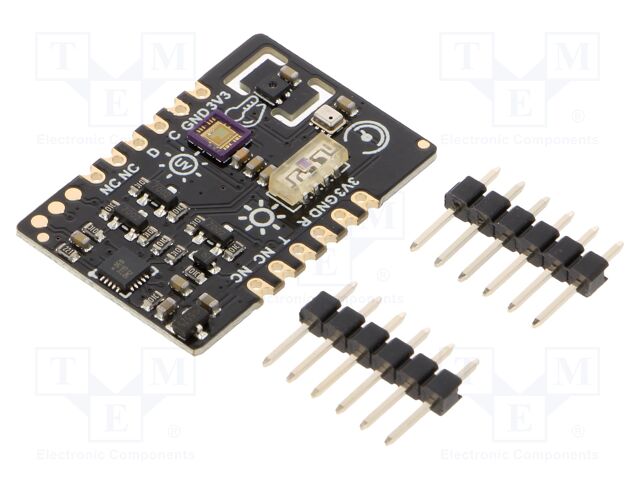

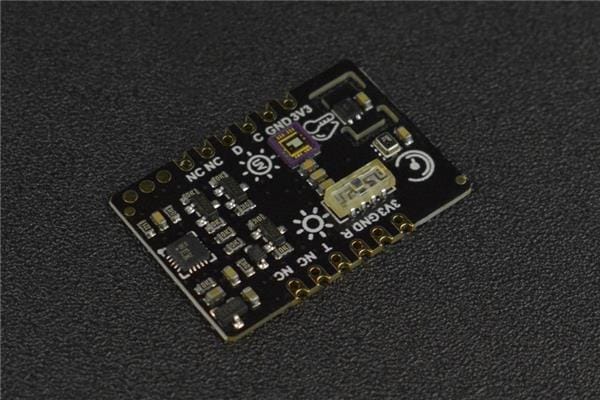

- This environmental breakout comprises of SHTC3 temperature & humidity sensor, BMP280 barometric pressure sensor, VEML7700 ambient light sensor, and ML8511 ultraviolet sensor. Support I2C and UART.
- The reasonable layout and heat conduction of main chips are carefully considered in the circuit design, which effectively guarantees the accuracy of the data.
- The product has an MCU processing chip onboard that converts the sensor raw data into values with the standard units so you can directly use them. For instance, ℃ and °F for temperature, % for humidity, Kpa for barometric pressure, lx for light illuminance, and mw/m² for UV light.
- The environmental sensor supports two communication methods(UART and I2C) and provides two versions: Gravity and Fermion(breakout), also complete Arduino and Python libraries are provided.
- Exquisite and small, you can use it to make indoor and outdoor environmental monitoring systems, or for your environmental monitoring topics. This DFRobot environmental sensor can greatly simplify the wiring and codes of your project.
