DFRobot . SEN0318
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1738-SEN0318-ND | 1 | 1 | 1 @ $15.05 | |
| Digi-Key | 11613073 | 1 | 1 | ||
 Newark | 33AK3629 | 1 | 1 | 1 @ $14.90 | |
| DF-SEN0318 | 1 | 1 | 1 @ $17.90, 3 @ $15.80 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

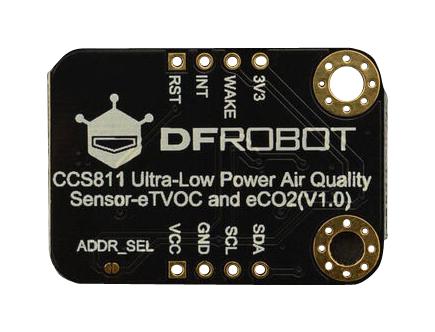

Gravity: CCS811 Air Quality Sensor for Arduino | Low Power, Fast Warm-up | Suitable for Air Measurement Project
Brand: DFROBOT

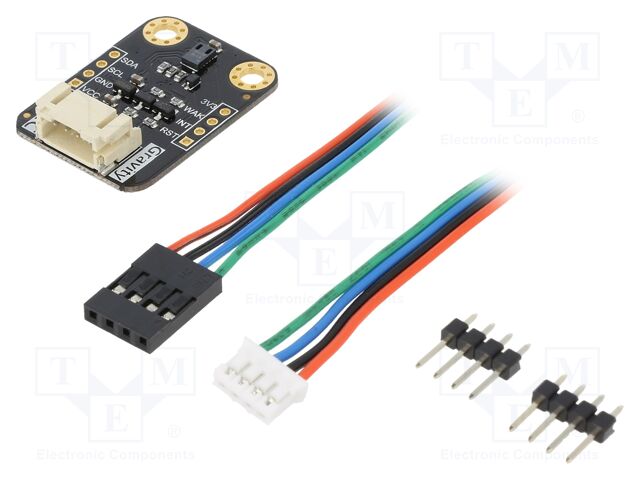

<b>Gravity: CCS811 Air Quality Sensor</b><br><br> <b>Introduction</b><br> The CCS811 is a low-power, fast warm-up, small air quality sensor that measures CO2, TVOC. It is suitable for a wide range of applications that involve air measurement.<br><br> <b>Features</b><br> Short warm-up time<br> Low power consumption<br> High integrated MCUs and ADCs<br> IAQ threshold alert<br><br> <b>Specification</b><br>Operating Voltage: 3.3V~5.5V<br>Warm-up Time: <15s<br>I2C Address: 0x5A (in default) / 0x5B<br>Operating Temperature Range: -40℃~85℃<br>Operating Humidity Range: 10%RH~95%RH<br>eCO2 Measuring Range: 400ppm~8000ppm<br>TVOC Measuring Range: 0ppb~1100ppb<br>Dimension: 22*31mm / 0.87*1.22inch<br><br><b>Application</b><br> Air quality detection in cars<br> Indoor air quality detections<br> Air purifiers<br> Smart home<br> Ventilation system<br><br> <b>Shipping List</b><br> Gravity: CCS811 Air Quality Sensor x1<br> Gravity-4P I2C/UART Wire x1<br> 2.54-4P Black Pin x2
Details
- Gravity: CCS811 Air Quality Sensor can measure the eCO2 (equivalent CO2) and TVOC (Total Volatile Organic Compounds) density. It can be widely used in many applications, such as air quality detection, air purifiers, ventilation system and so on.
- This CCS811 air quality sensor uses AMS's unique micro-hot plate technology. Compared to conventional gas sensors, the heating wire is lower power consumption, heating faster, and smaller.
- Internally integrated ADCs and MCUs allow data to be collected, calculated, and returned via IIC. The CCS811 supports a concentration alarm, which is triggered when the concentration exceeds the user-set threshold.
- The CCS811 air quality sensor supports multiple modes, such as detect in every second, in every 10s, in every one minute, in every 250ms and sleep mode. These modes are optimized for low power consumption during the sensor measurement, so the CCS811 is also suitable for portable applications.
- NOTE: The chip has stretched the clock in IIC. So, it is not compatible with some controllers, such as Raspberry Pi.
Listing
| Product group | BISS Basic |
|---|---|
| Product type | PRECISION_MEASURING |
| Model | SEN0318 |
| Part number | SEN0318 |
| Label | DFROBOT |
| Manufacturer | DFROBOT |
