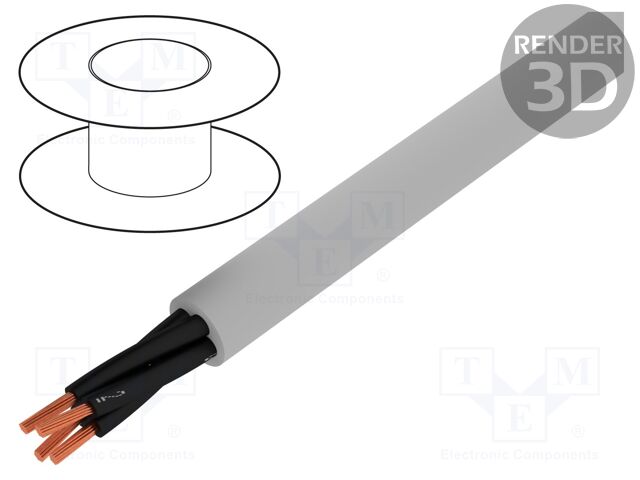

HELUKABEL 10124 | Wire; JZ-500; 4x2,5mm2; unshielded; 300/500V; Cu; stranded; grey

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHELUKABEL
DimensionUnitmm
Extra Product NameHELUKABEL 10124 | Wire; JZ-500; 4x2,5mm2; unshielded; 300/500V; Cu; stranded; grey
atoms1
diameter, length, width9.3
jsonUrlDatab8703bcc62739d2f0ab17db0453fd506.5
jsonUrlData2ed1ac7d6ac1aa06b2a89
length_Attrib, width_AttribCable external diameter
moq, multiple, tierMinQty1, Flexibility class5
MPN10124
qtyInStock310
SKUOZ500/4X2.5
snippetHELUKABEL 10124 | Wire; JZ-500; 4x2,5mm2; unshielded; 300/500V; Cu; stranded; gre
tierMinQty225
tierMinQty350
tierMinQty4100
tierPrice14.06
tierPrice23.54
tierPrice33.15
tierPrice42.78
Type of wirecontrol cable
Kind of wireJZ-500
Shield structureunshielded
Rated voltage300/500V
Wire insulation materialPVC
Kind of coreCu
Core structurestranded
Number of cores4
Core section2.5mm
Core markingblack, numbered
Insulation colourgrey
Cable external diameter9.3mm
Operating temperature-40...80?C
Resistance tomost of chemical compounds,
Earth corenone
CPR standardE
Cable applicationassembly line tools,
Kind of materialno flame propagation

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEOZ500/4X2.5531055 @ $4.06, 25 @ $3.54, 50 @ $3.15, 100 @ $2.78
