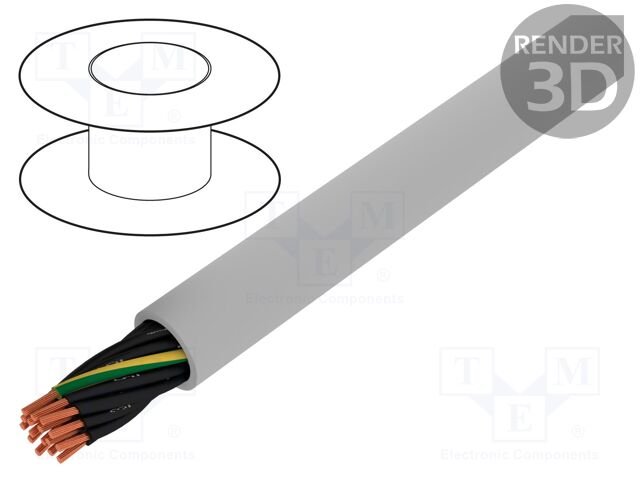

HELUKABEL 10106 | Wire; JZ-500; 16G1,5mm2; unshielded; 300/500V; Cu; stranded; grey

HELUKABEL . 10106

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHELUKABEL
CategoryL1Wires and Cables
CategoryL2Cables
CategoryL3Multicore Cables
CategoryL4Multicore Cables - Unshielded
DimensionUnitmm
Extra Product NameHELUKABEL 10106 | Wire; JZ-500; 16G1,5mm2; unshielded; 300/500V; Cu; stranded; grey
atoms1
diameter, length, width13.9
jsonUrlData444d8ef50c5a599ab725b896545b0e93.5
jsonUrlData28bf7256e32024c307bdc
keywordsHELUKABEL, 10106, JZ500/16X1.5, Wires and Cables, Cables, Multicore Cables, Multicore Cables - Unshielded
length_Attrib, width_AttribCable external diameter
moq, multiple, tierMinQty1, Flexibility class5
MPN10106
qtyInStock15
SKUJZ500/16X1.5
snippetHELUKABEL 10106 | Wire; JZ-500; 16G1,5mm2; unshielded; 300/500V; Cu; stranded; gre
tierMinQty225
tierMinQty350
tierMinQty4100
tierPrice110.27
tierPrice28.87
tierPrice37.93
tierPrice47
Type of wirecontrol cable
Kind of wireJZ-500
Shield structureunshielded
Rated voltage300/500V
Wire insulation materialPVC
Kind of coreCu
Core structurestranded
Number of cores16
Core section1.5mm
Core markingblack, numbered + ground wire
Insulation colourgrey
Cable external diameter13.9mm
Operating temperature-40...80?C
Resistance tomost of chemical compounds,
Earth coreyellow-green
CPR standardE
Cable applicationassembly line tools,
Kind of materialno flame propagation

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEJZ500/16X1.551555 @ $10.27, 25 @ $8.87, 50 @ $7.93, 100 @ $7.00
