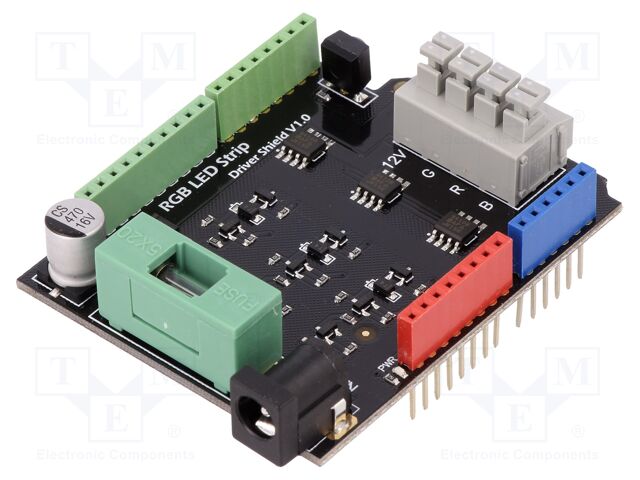

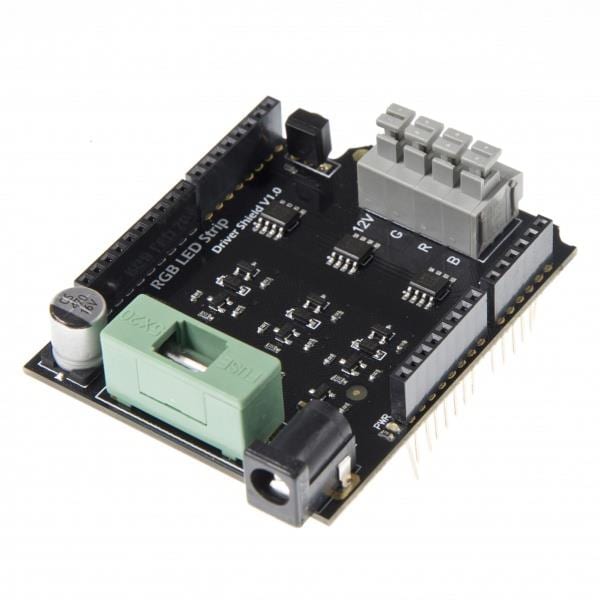

DFROBOT DFR0274 | Module: shield; RGB LED strip driver; 12VDC; pin strips; 6A

<b>INTRODUCTION</b> <br> Want to program your RGB LED strip to be a bit more "rhythmic" or "unpredictive"? This RGB LED Strip Shield contains all the components you need to build a super cool RGB (or other three channel) LED project with your Arduino. <br> The shield has 3 outputs with pulse width modulation. Each can control any 12V load, at up to 3A. The shield has build-in IR receiver which allows the LED strip being controlled by an IR remote controller. A buildin fuse protects the LED strip from over current or any shortage by any reasons. It cares your hard work. <br> This shield makes it possible to drive about 10 meter length RGB LED Strip with your Arduino processor, which almost require 10Amps(@12V) driving capability. <br> Note: Recommend to connect a 12v power source to the DC adapter on the RGB Strip driver shield, which could powering the Arduino also and protect the system from overcurrent by fuse. <br> Compatability<br> - Arduino UNO R2/R3 or compatible<br> - Arduino Mega 1280/2560<br> <br> <b>SPECIFICATION</b> <br> Compatible with Arduino Uno, Mega, Romeo, etc<br> Compatible with 12V RGB LED Strip(Common Anode)<br> Recommend working power: 72W (2A per way)<br> Limited driving capability: 10 meter RGB LED Strip with max brightness<br> Support IR remote control <br> RGB LED Strip driving pins:<br> *D9 -> Blue output<br> *D10 -> Red output<br> *D11 -> Green output<br> IR Receiver<br> *D4 -> IR receiver pin<br> <br> <b>SHIPPING LIST</b> <br> RGB LED Strip Driver Sheild x1<br>
