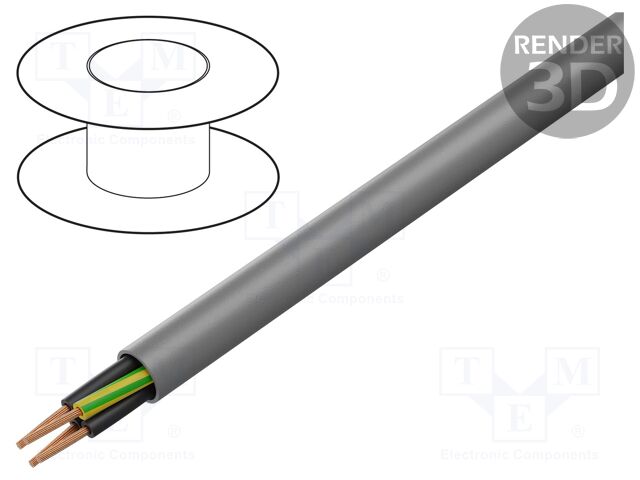

HELUKABEL 13038 | Wire; H05VV5-F,NYSLY?-JZ; 4G1,5mm2; unshielded; 300V,500V; Cu

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHELUKABEL
CategoryL1Wires and Cables
CategoryL2Cables
CategoryL3Multicore Cables
CategoryL4Multicore Cables - Unshielded
DimensionUnitmm
Extra Product NameHELUKABEL 13038 | Wire; H05VV5-F,NYSLY?-JZ; 4G1,5mm2; unshielded; 300V,500V; Cu
atoms1
diameter, length, width10.2
jsonUrlData5ab475ca21d375dea2dcb239add849ad.
jsonUrlData2d705af0d69d6d25773c3
keywordsHELUKABEL, 13038, H05VV5-F-4G1.5
length_Attrib, width_AttribMax. cable diameter
moq, multiple, tierMinQty1, Flexibility class5
MPN13038
qtyInStock89
SKUH05VV5-F-4G1.5
snippetHELUKABEL 13038 | Wire; H05VV5-F,NYSLY?-JZ; 4G1,5mm2; unshielded; 300V,500V; C
tierMinQty225
tierMinQty350
tierMinQty4100
tierPrice13.23
tierPrice22.89
tierPrice32.57
tierPrice42.25
Type of wirecontrol cable
Kind of wireH05VV5-F,
Shield structureunshielded
Rated voltage300V/
Wire insulation materialPVC
Kind of coreCu
Core structurestranded
Number of cores4
Core section1.5mm
Core markingblack, numbered + ground wire
Insulation colourgrey
Cable external diameter8.2...10.2mm
Kind of materialflame retardant
Operating temperature-40...70?C
Resistance toflame,
Earth coreyellow-green
CPR standardE
Cable applicationcontrol for machines,
Max cable diameter10.2mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEH05VV5-F-4G1.558955 @ $3.23, 25 @ $2.89, 50 @ $2.57, 100 @ $2.25
