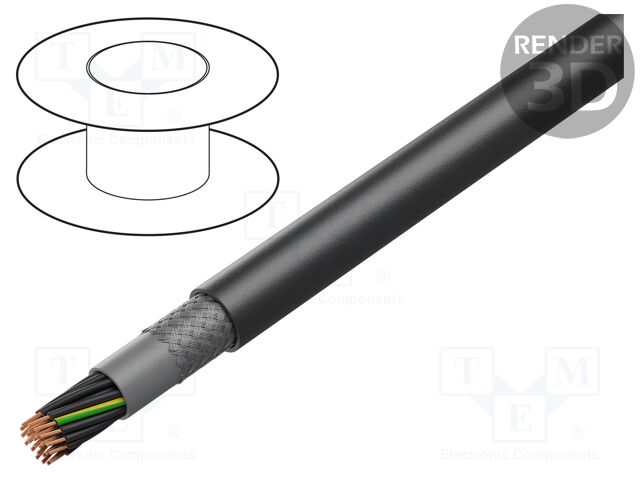

HELUKABEL 12877 | Wire; JZ-600 HMH-C; 25G1,5mm2; shielded,tinned copper braid

HELUKABEL . 12877

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHELUKABEL
CategoryL1Wires and Cables
CategoryL2Cables
CategoryL3Multicore Cables
CategoryL4Multicore Cables - Shielded
DimensionUnitmm
Extra Product NameHELUKABEL 12877 | Wire; JZ-600 HMH-C; 25G1,5mm2; shielded,tinned copper braid
atoms1
diameter, length, width25.4
jsonUrlData314360ec3a5cce38003b7115fea35d1b.5
jsonUrlData21c46d8d28995291ecf57
keywordsHELUKABEL, 12877, JZ600-HMHC-25G1.5, Wires and Cables, Cables, Multicore Cables, Multicore Cables - Shielded
length_Attrib, width_AttribCable external diameter
moq, multiple, tierMinQty15
MPN12877
qtyInStock0
SKUJZ600-HMHC-25G1.5
snippetHELUKABEL 12877 | Wire; JZ-600 HMH-C; 25G1,5mm2; shielded,tinned copper brai
tierMinQty2, Number of cores25
tierMinQty350
tierMinQty4100
tierPrice140.06
tierPrice236.4
tierPrice332.54
tierPrice428.47
Type of wirecontrol cable
Core structurestranded
Kind of coreCu
Core section1.5mm
Kind of wireJZ-600 HMH-C
Core markingblack, numbered + ground wire
Shield structureshielded,
Wire insulation materialLSZH
Insulation colourblack
Rated voltage0.6/1kV
Operating temperature-15...70?C
Resistance toflame,
Cable applicationair-conditioning technology,
Cable external diameter25.4mm
CPR standardD
Earth coreyellow-green
Kind of materialno flame propagation

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEJZ600-HMHC-25G1.5555 @ $40.06, 25 @ $36.40, 50 @ $32.54, 100 @ $28.47
