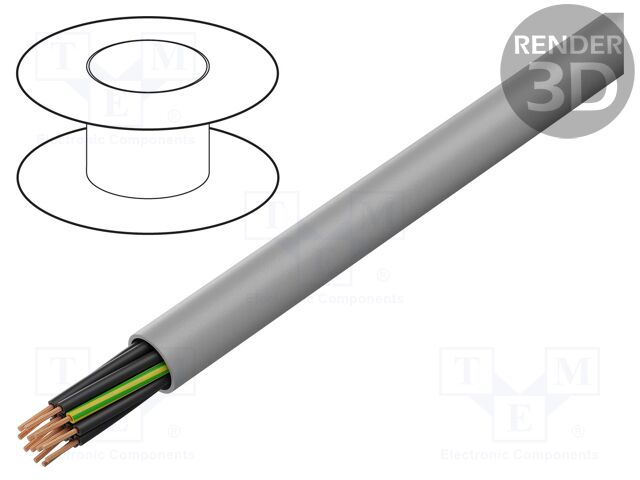

HELUKABEL 11008643 | Wire; HELUCONTROL?,JZ-520 HMH; 4G0,75mm2; unshielded; 300/500V

HELUKABEL . 11008643

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHELUKABEL
CategoryL1Wires and Cables
CategoryL2Cables
CategoryL3Multicore Cables
CategoryL4Multicore Cables - Unshielded
DimensionUnitmm
Extra Product NameHELUKABEL 11008643 | Wire; HELUCONTROL?,JZ-520 HMH; 4G0,75mm2; unshielded; 300/500V
atoms1
diameter, length, width6.3
jsonUrlData3a7363275007df64c623a157dfd4424a.5
jsonUrlData2bdb8aae80cdc28772251
keywordsHELUKABEL, 11008643, JZ520-HMH-4G0.75, Wires and Cables, Cables, Multicore Cables, Multicore Cables - Unshielded
length_Attrib, width_AttribCable external diameter
moq, multiple, tierMinQty1, Flexibility class5
MPN11008643
qtyInStock, tierMinQty4100
SKUJZ520-HMH-4G0.75
snippetHELUKABEL 11008643 | Wire; HELUCONTROL?,JZ-520 HMH; 4G0,75mm2; unshielded; 300/500
tierMinQty225
tierMinQty350
tierPrice12.39
tierPrice22.14
tierPrice31.9
tierPrice41.66
Type of wirecontrol cable
Kind of wireHELUCONTROL?,
Shield structureunshielded
Rated voltage300/500V
Wire insulation materialLSZH
Kind of coreCu
Core structurestranded
Number of cores4
Core section0.75mm
Core markingblack, numbered + ground wire
Insulation colourgrey
Cable external diameter6.3mm
Operating temperature-40...70?C
Resistance toflame,
Earth coreyellow-green
CPR standardB2
Cable applicationassembly line tools,
Cable featureslow smoke density
Kind of materialno flame propagation

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEJZ520-HMH-4G0.75510055 @ $2.39, 25 @ $2.14, 50 @ $1.90, 100 @ $1.66
