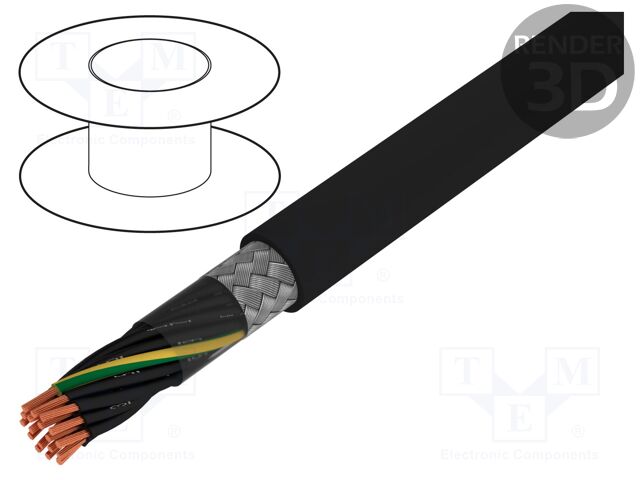

HELUKABEL 10948 | Wire; JZ-500-C; 18G0,75mm2; shielded,tinned copper braid; PVC

HELUKABEL . 10948

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHELUKABEL
CategoryL1Wires and Cables
CategoryL2Cables
CategoryL3Multicore Cables
CategoryL4Multicore Cables - Shielded
DimensionUnitmm
Extra Product NameHELUKABEL 10948 | Wire; JZ-500-C; 18G0,75mm2; shielded,tinned copper braid; PVC
atoms1
diameter, length, width13.7
jsonUrlData6a3d0a6c213902f800e787a56ca3356c.
jsonUrlData2e9cb2c00b03868843d01
keywordsHELUKABEL, 10948, JZ500-C-BK-18G0.75
length_Attrib, width_AttribCable external diameter
moq, multiple, tierMinQty1, Flexibility class5
MPN10948
qtyInStock35
SKUJZ500-C-BK-18G0.75
snippetHELUKABEL 10948 | Wire; JZ-500-C; 18G0,75mm2; shielded,tinned copper braid; PV
tierMinQty225
tierMinQty350
tierMinQty4100
tierPrice112.7
tierPrice211.36
tierPrice310.03
tierPrice48.69
Type of wirecontrol cable
Core structurestranded
Kind of coreCu
Number of cores18
Core section0.75mm
Kind of wireJZ-500-C
Core markingblack, numbered + ground wire
Shield structureshielded,
Wire insulation materialPVC
Insulation colourblack
Rated voltage300V/
Kind of materialno flame propagation
Operating temperature-10...80?C
Resistance tomost of chemical compounds,
Cable applicationassembly line tools,
Cable external diameter13.7mm
CPR standardE
Earth coreyellow-green

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEJZ500-C-BK-18G0.7553555 @ $12.70, 25 @ $11.36, 50 @ $10.03, 100 @ $8.69
