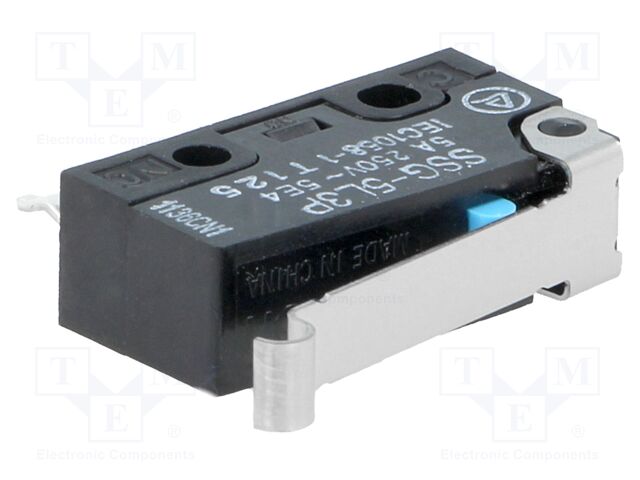

OMRON OCB SSG-5L3P | Microswitch SNAP ACTION; with lever with roller simulation

OMRON OCB . SSG-5L3P

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
DimensionUnitmm
Extra Product NameOMRON OCB SSG-5L3P | Microswitch SNAP ACTION; with lever with roller simulation
atoms, moq, multiple, tierMinQty1, Stable positions number1
jsonUrlData58f5e86643ab386b1792a5c23dad5ac8.
jsonUrlData2f11739b79ff97bbd5f41
keywordsOMRON OCB, SSG-5L3P
length18.67
length_AttribLever length
MPN, SKUSSG-5L3P
qtyInStock34
snippetOMRON OCB SSG-5L3P | Microswitch SNAP ACTION; with lever with roller simulatio
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice13.09
tierPrice22.96
tierPrice32.78
tierPrice42.6
tierPrice52.38
Type of switchmicroswitch SNAP ACTION
Switches featureswith lever with roller simulation
Contacts configurationSPDT
AC contacts rating @R3A / 250V AC
DC contacts rating @R4A / 30V DC
Max contact resistance:30m?
Switching methodON-(ON)
Number of positions2
IP ratingIP40
Leadsfor PCB,
Body dimensions19.8x6.4x10.2mm
Mechanical durability10000000 cycles
Operating temperature-25...125?C
Operating Force1.5N
Lever length18.67mm
Electrical life200000 cycles
Min insulation resistance100M?
Terminal pitch7.2mm
Manufacturer seriesSSG

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMESSG-5L3P13411 @ $3.09, 5 @ $2.96, 20 @ $2.78, 100 @ $2.60, 500 @ $2.38
