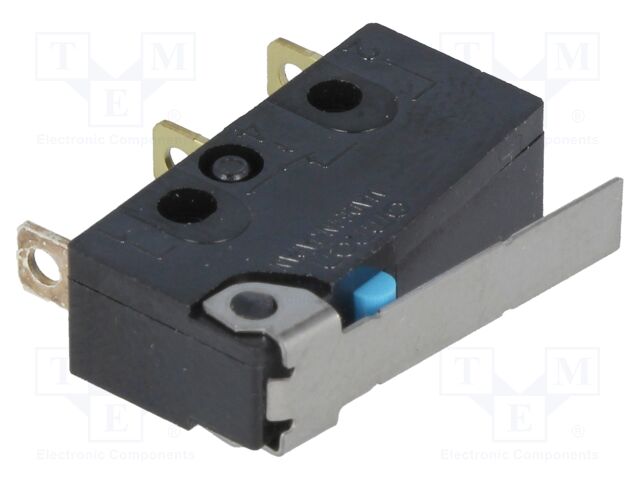

OMRON OCB SSG-01L1H | Microswitch SNAP ACTION; with lever; SPDT; 0.1A/125VAC; ON-(ON)

OMRON OCB . SSG-01L1H

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
DimensionUnitmm
Extra Product NameOMRON OCB SSG-01L1H | Microswitch SNAP ACTION; with lever; SPDT; 0.1A/125VAC; ON-(ON)
atoms, moq, multiple, Stable positions number1
jsonUrlDatab8703bcc62739d2f0ab17db0453fd506.5
jsonUrlData27c2fe613097f0210b38d
keywordsOMRON OCB, SSG-01L1H, Switches and Indicators, Microswitches, Microswitches SNAP ACTION
length16.1
length_AttribLever length
MPN, SKUSSG-01L1H
qtyInStock0
snippetOMRON OCB SSG-01L1H | Microswitch SNAP ACTION; with lever; SPDT; 0.1A/125VAC; ON-(ON
Type of switchmicroswitch SNAP ACTION
Switches featureswith lever
Contacts configurationSPDT
AC contacts rating @R0.1A / 125V AC
DC contacts rating @R0.1A / 30V DC
Max contact resistance:50m?
Switching methodON-(ON)
Number of positions2
IP ratingIP40
Leadsfor soldering
Body dimensions19.8x6.4x10.2mm
Mechanical durability10000000 cycles
Operating temperature-25...125?C
Operating Force1.5N
Lever length16.1mm
Electrical life200000 cycles
Min insulation resistance100M?
Terminal pitch7.2mm
Manufacturer seriesSSG

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMESSG-01L1H11
