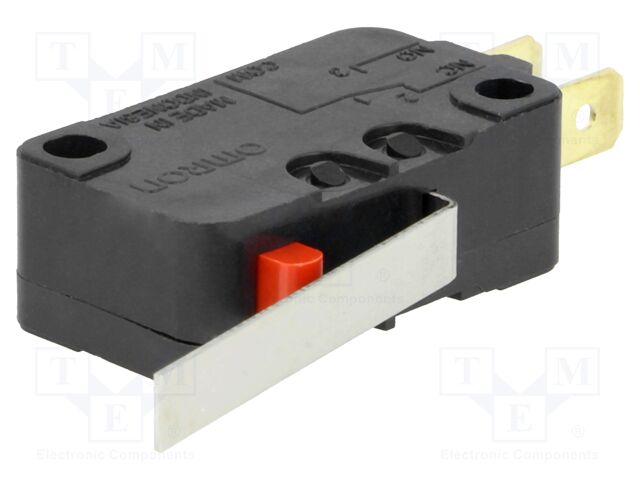

OMRON OCB D3V-162-1C25 | Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; with lever; SPDT

OMRON OCB . D3V-162-1C25

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
DimensionUnitmm
Extra Product NameOMRON OCB D3V-162-1C25 | Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; with lever; SPDT
atoms, moq, multiple, tierMinQty1, Stable positions number1
jsonUrlData6d2fb47076d572da02581df84420bfb8.
jsonUrlData29a745d6b1abfa7bc3c16
keywordsOMRON OCB, D3V-162-1C25, Switches and Indicators, Microswitches, Microswitches SNAP ACTION
length27.1
length_AttribLever length
MPN, SKUD3V-162-1C25
qtyInStock469
snippetOMRON OCB D3V-162-1C25 | Microswitch SNAP ACTION; 16A/250VAC; 10A/30VDC; with lever; SPD
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.04
tierPrice20.98
tierPrice30.91
tierPrice40.84
tierPrice50.7
Type of switchmicroswitch SNAP ACTION
AC contacts rating @R16A / 250V AC
DC contacts rating @R10A / 30V DC
Switches featureswith lever
Contacts configurationSPDT
Max contact resistance:30m?
Switching methodON-(ON)
Number of positions2
IP ratingIP40
Leadsconnectors 4,75x0,5mm
Body dimensions27.8x10.3x15.9mm
Mechanical durability10000000 cycles
Operating temperature-25...105?C
Operating Force1.96N
Lever length27.1mm
Electrical life100000 cycles
Contact platingsilver plated
Min insulation resistance0.1G?
Manufacturer seriesD3V

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMED3V-162-1C25146911 @ $1.04, 5 @ $0.98, 20 @ $0.91, 100 @ $0.84, 500 @ $0.70
