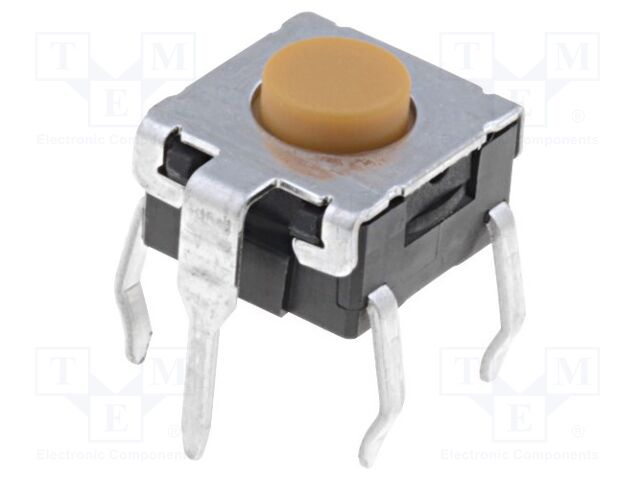

OMRON OCB B3W-1102 | Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 2.25N

OMRON OCB . B3W-1102

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches TACT
DimensionUnitmm
Extra Product NameOMRON OCB B3W-1102 | Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 2.25N
atoms, moq, multiple, Stable positions number1
height4.3
height_AttribButton height
jsonUrlData58eafd51418cb82108a6dfa2bcf2b460.
jsonUrlData217c9160f3c30681fa519
keywordsOMRON OCB, B3W-1102
MPN, SKUB3W-1102
qtyInStock0
snippetOMRON OCB B3W-1102 | Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 2.25
Type of switchmicroswitch TACT
Contacts configurationSPST-NO
Number of positions2
DC contacts rating @R50mA / 24V DC
MountingTHT
Illuminationnone
Operating Force2.25N
Body dimensions6x6mm
Button height4.3mm
Switching methodOFF-(ON)
Terminal pitch4.5x6.5mm
Operating temperature-25...70?C
Button shaperound
Actuator colouryellow
Key stroke0.25mm
Leadsfor PCB,
Max contact resistance:100m?
Min insulation resistance0.1G?
Mechanical durability300000 cycles
Switches featureswith ground terminal
Manufacturer seriesB3W

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEB3W-110211
