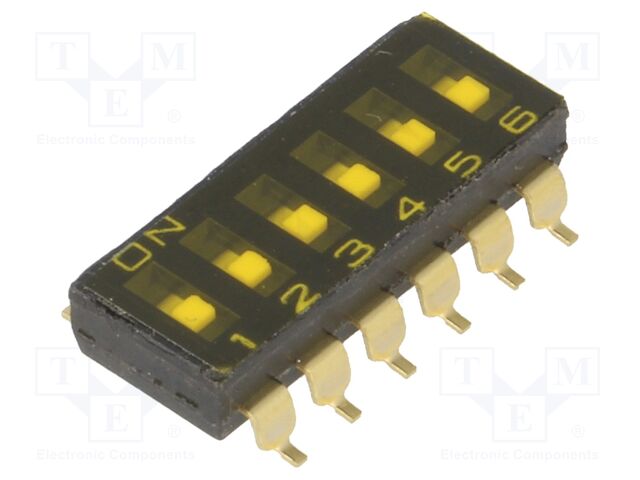

OMRON OCB A6S-6102-H | Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.025A/24VDC; Pos: 2

OMRON OCB . A6S-6102-H

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Dip-Switches
DimensionUnitmm
Extra Product NameOMRON OCB A6S-6102-H | Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.025A/24VDC; Pos: 2
atoms, moq, multiple, tierMinQty11
jsonUrlData4f39be28e2a92afea601792cedc7185d.
jsonUrlData2e3db53c93ec059861506
keywordsOMRON OCB, A6S-6102-H
length16.18
length_AttribOverall length
MPN, SKUA6S-6102-H
qtyInStock319
snippetOMRON OCB A6S-6102-H | Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.025A/24VDC; Pos:
tierMinQty25
tierMinQty320
tierMinQty4112
tierMinQty5504
tierPrice11.53
tierPrice21.43
tierPrice31.37
tierPrice41.26
tierPrice51.19
Type of switchDIP-SWITCH
Poles number6
Switching methodON-OFF
DC contacts rating @R0.025A / 24V DC
Number of positions, Stable positions number2
Operating temperature-20...70?C
MountingSMT
Min insulation resistance0.1G?
Terminal pitch2.54mm
Manufacturer seriesA6S-H
Body dimensions16.18x6.2x3mm
Electrical life, Mechanical durability1000 cycles
Max contact resistance:200m?
Row pitch8.9mm
Contact platinggold-plated
Overall length16.18mm
IP ratingIP40

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEA6S-6102-H131911 @ $1.53, 5 @ $1.43, 20 @ $1.37, 112 @ $1.26, 504 @ $1.19
