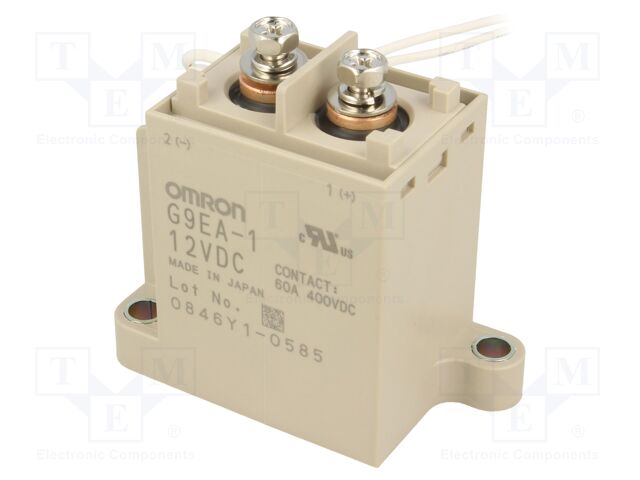

OMRON OCB G9EA-1 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 100A

OMRON OCB . G9EA-1 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Power Electromagnetic Relays
Extra Product NameOMRON OCB G9EA-1 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 100A
atoms, moq, multiple1
jsonUrlData4c7266ae3b49f508cd7e2507d72bdfda.
jsonUrlData20dfdb7d4f88f071a2735
keywordsOMRON OCB, G9EA-1 12VDC, G9EA-1-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Power Electromagnetic Relays
MPNG9EA-1 12VDC
qtyInStock0
SKUG9EA-1-12DC
snippetOMRON OCB G9EA-1 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 100
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max100A
Relay seriesG9EA
Relay variantpower
Operating temperature-40...70?C
Mountingon panel
Body dimensions73x36x67.2mm
Switched voltagemax. 400V DC
Coil resistance28.8?
Contact resistance30m?
Coil power consumption5W
Leadsleads 230mm,
Operate time50ms
Release time30ms
Coil current417mA
DC contacts rating @R60A / 400V DC

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG9EA-1-12DC11
