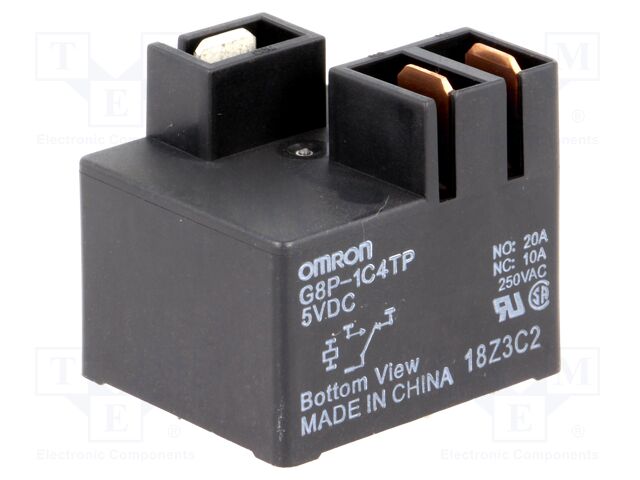

OMRON OCB G8P-1C4TP 5VDC | Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 20A; PCB

OMRON OCB . G8P-1C4TP 5VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Power Electromagnetic Relays
Extra Product NameOMRON OCB G8P-1C4TP 5VDC | Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 20A; PCB
atoms, moq, multiple1
jsonUrlData145b5b2eb6f525e8945f540ecf419a7e.
jsonUrlData21235484b1edec512afcc
keywordsOMRON OCB, G8P-1C4TP 5VDC, G8P-1C4TP-5DC, Relays and Contactors, Relays, Electromagnetic Relays, Power Electromagnetic Relays
MPNG8P-1C4TP 5VDC
qtyInStock0
SKUG8P-1C4TP-5DC
snippetOMRON OCB G8P-1C4TP 5VDC | Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 20A; PC
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage5V DC
Contact current max20A
Relay seriesG8P
Relay variantpower
Operating temperature-55...105?C
MountingPCB
Switched voltagemax. 28V DC,
Coil resistance27?
AC contacts rating @R20A / 250V AC
Contact resistance100m?
Coil power consumption0.9W
Leadsconnectors 6,3x0,8mm,
Operate time15ms
Release time10ms
Coil current185mA
DC contacts rating @R20A / 28V DC
Enclosure descriptionhermetic seal

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG8P-1C4TP-5DC11
