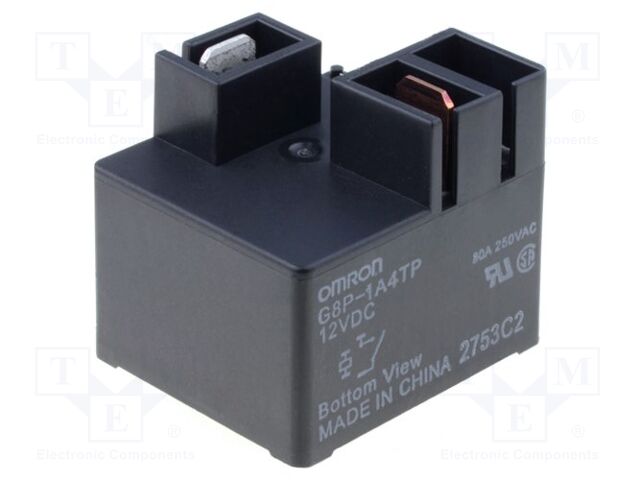

OMRON OCB G8P-1A4TP 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A

OMRON OCB . G8P-1A4TP 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Power Electromagnetic Relays
Extra Product NameOMRON OCB G8P-1A4TP 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30A
atoms, moq, multiple1
jsonUrlData41281b158bba62f0df42f009ff680aec.
jsonUrlData278dfb44d809fd895c454
keywordsOMRON OCB, G8P-1A4TP 12VDC, G8P-1A4TP-12DC
MPNG8P-1A4TP 12VDC
qtyInStock0
SKUG8P-1A4TP-12DC
snippetOMRON OCB G8P-1A4TP 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 30
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max30A
Relay seriesG8P
Relay variantpower
Operating temperature-55...105?C
MountingPCB
Switched voltagemax. 28V DC,
Coil resistance155?
AC contacts rating @R30A / 250V AC
Contact resistance100m?
Coil power consumption0.9W
Leadsconnectors 6,3x0,8mm,
Operate time15ms
Release time10ms
Coil current77mA
DC contacts rating @R20A / 28V DC
Enclosure descriptionhermetic seal

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG8P-1A4TP-12DC11
