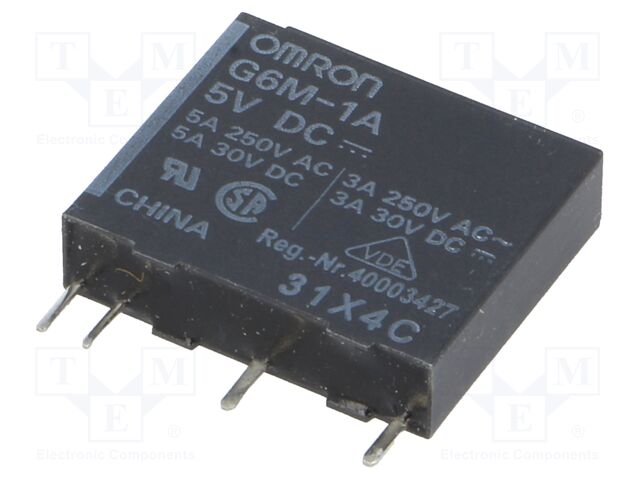

OMRON OCB G6M-1A 5VDC | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A

OMRON OCB . G6M-1A 5VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6M-1A 5VDC | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A
atoms, moq, multiple1
jsonUrlData341981172a7b69b43cd4ea81f0e53500.
jsonUrlData246ebec4b247f2b95ae94
keywordsOMRON OCB, G6M-1A 5VDC, G6M-1A-5DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6M-1A 5VDC
qtyInStock0
SKUG6M-1A-5DC
snippetOMRON OCB G6M-1A 5VDC | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max5A
AC contacts rating @R3A / 250V AC
DC contacts rating @R3A / 30V DC
Switched voltagemax. 125V DC,
Relay variantinterface
MountingPCB
Coil resistance208?
Operate time10ms
Body dimensions20.3x5.08x17.7mm
Release time5ms
Coil power consumption120mW
Operating temperature-40...85?C
Relay seriesG6M
Contact resistance100m?
Terminal pitch7.62mm
Coil current24mA
