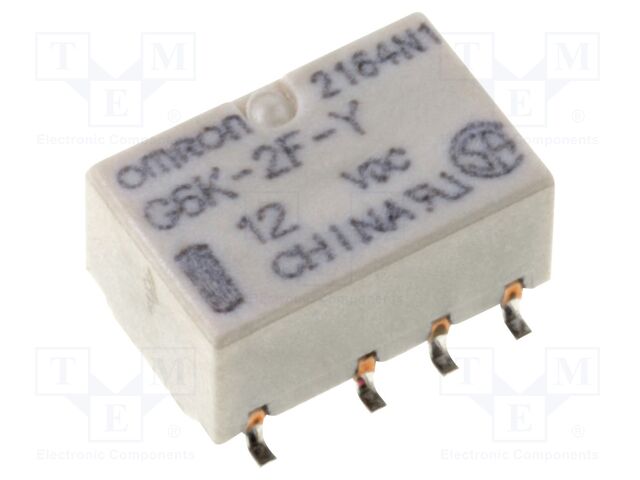

OMRON OCB G6K-2F-Y 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; SMD

OMRON OCB . G6K-2F-Y 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6K-2F-Y 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; SMD
atoms, moq, multiple, tierMinQty11
jsonUrlData124bcbcfa9af54fd3fa73ef7914bb2f0.
jsonUrlData2bf1287486ab8182bcd84
keywordsOMRON OCB, G6K-2F-Y 12VDC, G6K-2F-Y-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6K-2F-Y 12VDC
qtyInStock496
SKUG6K-2F-Y-12DC
snippetOMRON OCB G6K-2F-Y 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; SM
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice14.57
tierPrice24.36
tierPrice34.16
tierPrice43.84
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage12V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 60V DC,
Relay variantsubminiature
MountingSMD
Coil resistance1315?
Operate time, Release time3ms
Body dimensions10x6.5x5.2mm
Coil power consumption100mW
Operating temperature-40...70?C
Relay seriesG6K
Contact resistance100m?
Terminal pitch3.2mm
Coil current9.1mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6K-2F-Y-12DC149611 @ $4.57, 5 @ $4.36, 25 @ $4.16, 100 @ $3.84
