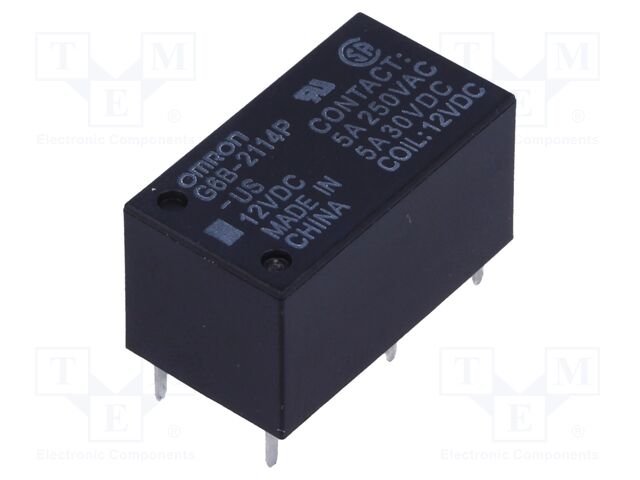

OMRON OCB G6B-2114P-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VDC

OMRON OCB . G6B-2114P-US 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6B-2114P-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VDC
atoms, moq, multiple, tierMinQty11
jsonUrlData6cb44f14a5a420eb7d6457cdb7983ffd.
jsonUrlData23db4900aa603419ca0ba
keywordsOMRON OCB, G6B-2114P-US 12VDC, G6B-2114P-US-12DC
MPNG6B-2114P-US 12VDC
qtyInStock817
SKUG6B-2114P-US-12DC
snippetOMRON OCB G6B-2114P-US 12VDC | Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VD
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice16.14
tierPrice25.88
tierPrice35.59
tierPrice45.03
Type of relayelectromagnetic
Contacts configurationSPST-NO + SPST-NC
Rated coil voltage12V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB,
Coil resistance480?
Operate time, Release time10ms
Body dimensions20x10x10mm
Operating temperature-25...70?C
Relay seriesG6B
Contact resistance30m?
Terminal pitch7.62mm
Coil current25mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6B-2114P-US-12DC181711 @ $6.14, 5 @ $5.88, 25 @ $5.59, 100 @ $5.03
