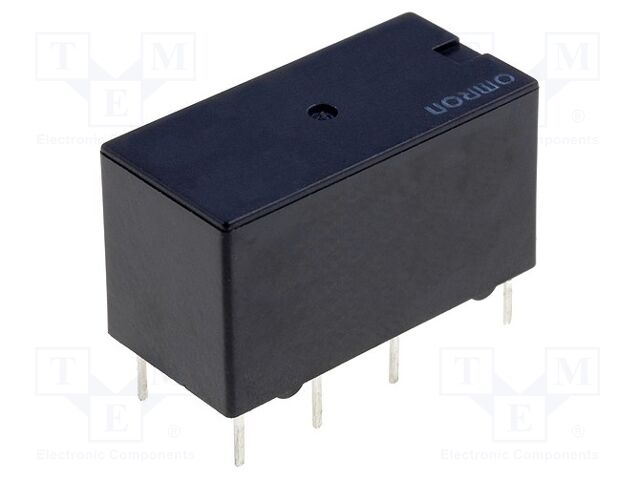

OMRON OCB G5V-2-H1 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB

OMRON OCB . G5V-2-H1 5VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5V-2-H1 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData96f478d7229276c749ba2f5878d937d9.
jsonUrlData29a745d6b1abfa7bc3c16
keywordsOMRON OCB, G5V-2-H1 5VDC, G5V2-H1-5, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG5V-2-H1 5VDC
qtyInStock726
SKUG5V2-H1-5
snippetOMRON OCB G5V-2-H1 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice12.75
tierPrice22.58
tierPrice32.43
tierPrice42.2
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage5V DC
Contact current max2A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R1A / 24V DC
Switched voltagemax. 125V AC,
Relay variantminiature
MountingPCB
Coil resistance166.7?
Operate time7ms
Body dimensions20.5x10.1x11.5mm
Release time3ms
Coil power consumption150mW
Operating temperature-25...70?C
Relay seriesG5V-2
Contact resistance100m?
Terminal pitch5mm
Coil current30mA
Contact platinggold-plated

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5V2-H1-5172611 @ $2.75, 5 @ $2.58, 25 @ $2.43, 100 @ $2.20
