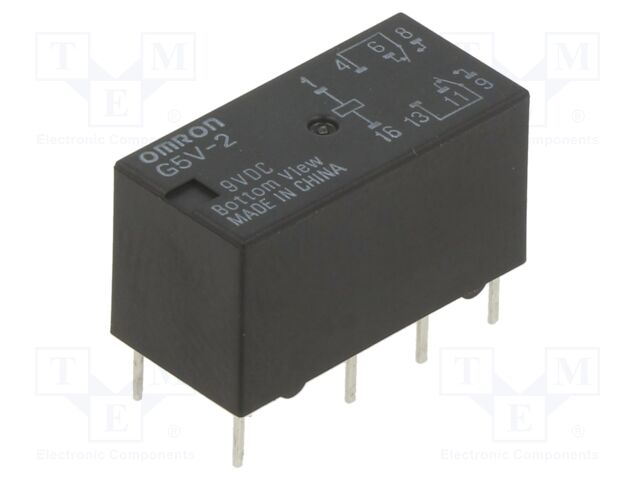

OMRON OCB G5V-2 9VDC | Relay: electromagnetic; DPDT; Ucoil: 9VDC; Icontacts max: 2A; PCB

OMRON OCB . G5V-2 9VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G5V-2 9VDC | Relay: electromagnetic; DPDT; Ucoil: 9VDC; Icontacts max: 2A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData0a234f6a6043aee1efea8e96d1e15332.
jsonUrlData2e6f0ea13871a359096ae
keywordsOMRON OCB, G5V-2 9VDC, G5V2-9, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG5V-2 9VDC
qtyInStock20
SKUG5V2-9
snippetOMRON OCB G5V-2 9VDC | Relay: electromagnetic; DPDT; Ucoil: 9VDC; Icontacts max: 2A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice14.09
tierPrice23.91
tierPrice33.56
tierPrice43.28
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage9V DC
Contact current max2A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R2A / 30V DC
Switched voltagemax. 125V AC,
Relay variantminiature
MountingPCB
Coil resistance162?
Operate time7ms
Body dimensions20.5x10.1x11.5mm
Release time3ms
Coil power consumption0.5W
Operating temperature-25...70?C
Relay seriesG5V-2
Contact resistance50m?
Terminal pitch5mm
Coil current55.6mA
Contact platinggold-plated

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG5V2-912011 @ $4.09, 5 @ $3.91, 25 @ $3.56, 100 @ $3.28
