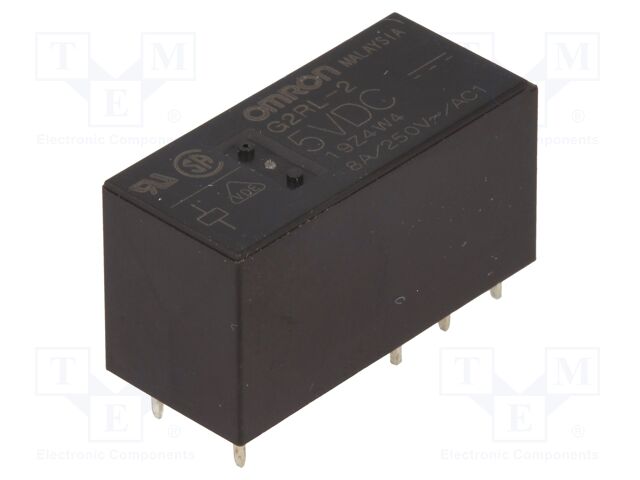

OMRON OCB G2RL-2 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 8A; PCB

OMRON OCB . G2RL-2 5VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G2RL-2 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 8A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData7eba66b815629567b4649a3ef31c4b62.
jsonUrlData2d6a0256435e3b04813d5
keywordsOMRON OCB, G2RL-2 5VDC, G2RL-2-5DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG2RL-2 5VDC
qtyInStock307
SKUG2RL-2-5DC
snippetOMRON OCB G2RL-2 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 8A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice13.6
tierPrice23.37
tierPrice33.23
tierPrice42.44
tierPrice52.34
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage5V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 300V DC,
Relay variantminiature
MountingPCB
Coil resistance62.5?
Operate time15ms
Body dimensions29x12.7x15.7mm
Release time5ms
Operating temperature-40...85?C
Relay seriesG2RL
Contact resistance100m?
Terminal pitch5mm
Coil current80mA
Enclosure descriptionstandard seal
Leadsfor PCB

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG2RL-2-5DC130711 @ $3.60, 5 @ $3.37, 25 @ $3.23, 100 @ $2.44, 500 @ $2.34
