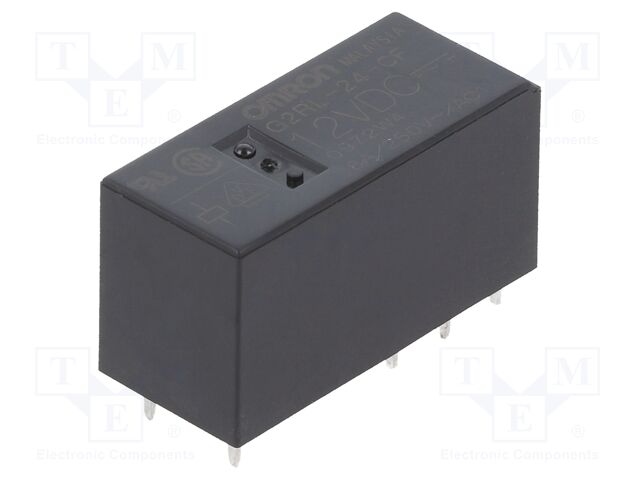

OMRON OCB G2RL-24-CF DC12 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 8A; PCB

OMRON OCB . G2RL-24-CF DC12

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G2RL-24-CF DC12 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 8A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData9d9cce0962004d13b3939573973f2d37.
jsonUrlData2dd3324c109933b0d6378
keywordsOMRON OCB, G2RL-24-CF DC12, G2RL-24-CF-12DC
MPNG2RL-24-CF DC12
qtyInStock0
SKUG2RL-24-CF-12DC
snippetOMRON OCB G2RL-24-CF DC12 | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 8A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice13.24
tierPrice22.83
tierPrice32.51
tierPrice42.24
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage12V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R8A / 24V DC
Switched voltagemax. 300V DC,
Relay variantminiature
MountingPCB
Coil resistance360?
Operate time15ms
Body dimensions29x12.7x15.7mm
Release time5ms
Operating temperature-40...85?C
Relay seriesG2RL
Contact resistance100m?
Terminal pitch5mm
Coil current33.33mA
Enclosure descriptionhermetic seal
Leadsfor PCB

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG2RL-24-CF-12DC111 @ $3.24, 5 @ $2.83, 25 @ $2.51, 100 @ $2.24
