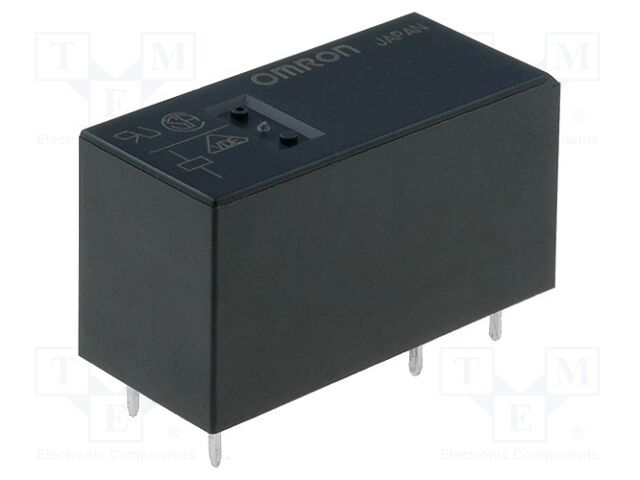

OMRON OCB G2RL-1-H 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A

OMRON OCB . G2RL-1-H 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G2RL-1-H 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
atoms, moq, multiple, tierMinQty11
jsonUrlDataaa806176d37234d65237e34c9f80b592.
jsonUrlData232b8d7cc6518d1e6f765
keywordsOMRON OCB, G2RL-1-H 24VDC, G2RL-1-H-24DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG2RL-1-H 24VDC
qtyInStock283
SKUG2RL-1-H-24DC
snippetOMRON OCB G2RL-1-H 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10
tierMinQty25
tierMinQty320
tierMinQty4100
tierPrice13.94
tierPrice23.59
tierPrice32.8
tierPrice42.61
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V DC
Contact current max10A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 24V DC
Switched voltagemax. 300V DC,
Relay variantminiature
MountingPCB
Coil resistance2304?
Operate time15ms
Body dimensions29x12.7x15.7mm
Release time5ms
Operating temperature-40...85?C
Relay seriesG2RL
Contact resistance100m?
Terminal pitch3.5mm
Coil current10.42mA
Enclosure descriptionstandard seal
Leadsfor PCB

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG2RL-1-H-24DC128311 @ $3.94, 5 @ $3.59, 20 @ $2.80, 100 @ $2.61
