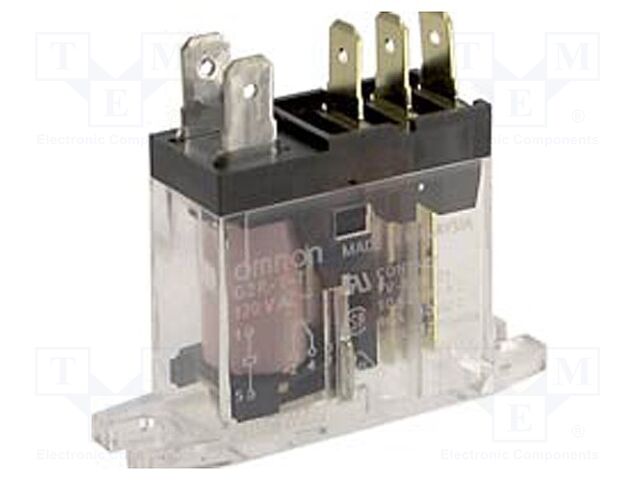

OMRON OCB G2R-1-T 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A

OMRON OCB . G2R-1-T 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G2R-1-T 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A
atoms, moq, multiple1
jsonUrlDatafae5f8c9b0803ec282a29d8d83cd15d9.
jsonUrlData29d9e296d95744a2d1283
keywordsOMRON OCB, G2R-1-T 12VDC, G2R-1-T-12VDC
MPNG2R-1-T 12VDC
qtyInStock0
SKUG2R-1-T-12VDC
snippetOMRON OCB G2R-1-T 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage12V DC
Contact current max10A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
Mountingsocket
Coil voltage min9.6V DC
Operate time15ms
Body dimensions29x13x25.5mm
Release time5ms
Mechanical durability20000000 cycles
Operating temperature-40...70?C
Relay seriesG2R
Contact resistance30m?
Coil current43.6mA
Enclosure descriptionstandard seal

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG2R-1-T-12VDC11
TMEG2R-1-T-12DC11011 @ $6.68, 5 @ $6.45, 25 @ $6.12, 100 @ $5.56, 500 @ $5.12
