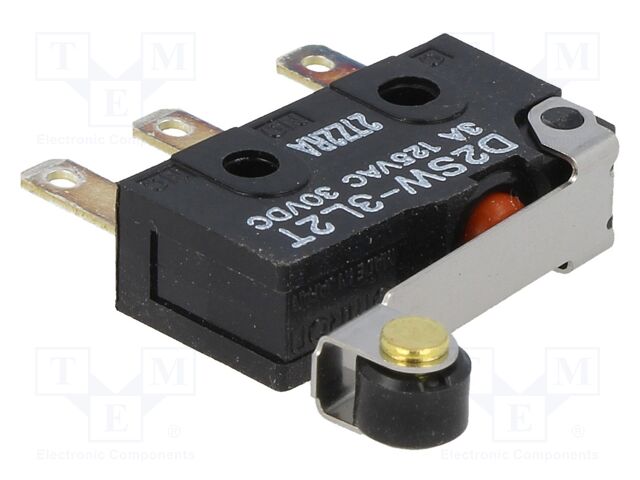

OMRON OCB D2SW-3L2T | Microswitch SNAP ACTION; 3A/125VAC; 3A/30VDC; SPDT; ON-(ON); IP67

OMRON OCB . D2SW-3L2T

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
DimensionUnitmm
Extra Product NameOMRON OCB D2SW-3L2T | Microswitch SNAP ACTION; 3A/125VAC; 3A/30VDC; SPDT; ON-(ON); IP67
atoms, moq, multiple, tierMinQty1, Stable positions number1
jsonUrlData277d879839be6e34f002753aadca4e4f.
jsonUrlData2cd8633d92fd956993be2
keywordsOMRON OCB, D2SW-3L2T, Switches and Indicators, Microswitches, Microswitches SNAP ACTION
length14.5
length_AttribLever length
MPN, SKUD2SW-3L2T
qtyInStock, tierMinQty325
snippetOMRON OCB D2SW-3L2T | Microswitch SNAP ACTION; 3A/125VAC; 3A/30VDC; SPDT; ON-(ON); IP6
tierMinQty210
tierPrice14.38
tierPrice23.85
tierPrice33.31
Type of switchmicroswitch SNAP ACTION
AC contacts rating @R3A / 125V AC
DC contacts rating @R3A / 30V DC
Switches featureswith lever (with roller)
Contacts configurationSPDT
Max contact resistance:30m?
Switching methodON-(ON)
Number of positions2
IP ratingIP67
Leadsconnectors 2,8x0,5mm
Body dimensions19.8x6.4x10.1mm
Mechanical durability5000000 cycles
Operating temperature-40...85?C
Operating Force0.59N
Lever length14.5mm
Electrical life200000 cycles
Contact platingsilver plated
Terminal pitch8.7mm
Related items, Manufacturer seriesD2SW

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMED2SW-3L2T12511 @ $4.38, 10 @ $3.85, 25 @ $3.31
