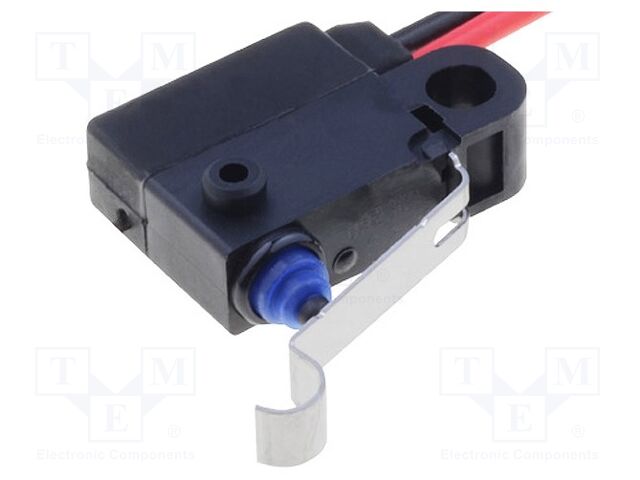

OMRON OCB D2HW-C272MR | Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; SPST-NC; Pos: 2

OMRON OCB . D2HW-C272MR

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
DimensionUnitmm
Extra Product NameOMRON OCB D2HW-C272MR | Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; SPST-NC; Pos: 2
atoms, moq, multiple, Stable positions number1
jsonUrlData9dffe75874937303393fe81d4e5cc45d.
jsonUrlData294127eb235d3b89add9c
keywordsOMRON OCB, D2HW-C272MR, Switches and Indicators, Microswitches, Microswitches SNAP ACTION
length16.0
length_AttribLever length
MPN, SKUD2HW-C272MR
qtyInStock0
snippetOMRON OCB D2HW-C272MR | Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; SPST-NC; Pos:
Type of switchmicroswitch SNAP ACTION
AC contacts rating @R0.1A / 125V AC
DC contacts rating @R2A / 12V DC
Switches featureswith lever with roller simulation
Contacts configurationSPST-NC
Max contact resistance:150m?
Switching methodON-(OFF)
Number of positions2
IP ratingIP67
Leadsleads 300mm,
Body dimensions18.5x5.3x6.5mm
Mechanical durability1000000 cycles
Operating temperature-40...85?C
Operating Force1.8N
Lever length16mm
Electrical life100000 cycles
Contact platinggold-plated
Manufacturer seriesD2HW-C
