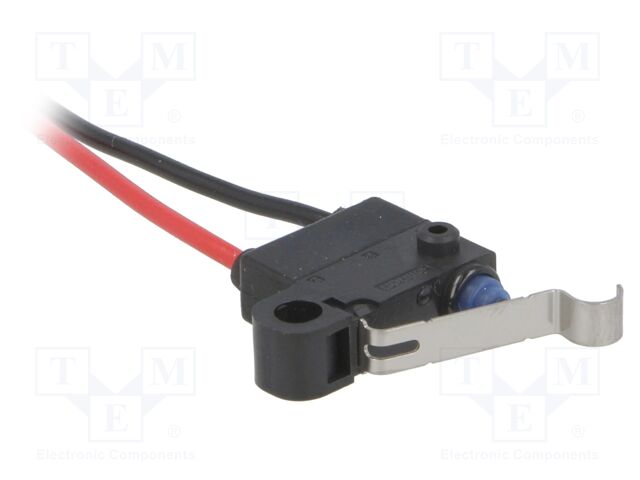

OMRON OCB D2HW-C272M | Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; SPST-NC; Pos: 2

OMRON OCB . D2HW-C272M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
DimensionUnitmm
Extra Product NameOMRON OCB D2HW-C272M | Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; SPST-NC; Pos: 2
atoms, moq, multiple, tierMinQty1, Stable positions number1
jsonUrlData390731f810927aa5af8d4bcdd8fd3d0b.
jsonUrlData271adc3a8bded620e3fe8
keywordsOMRON OCB, D2HW-C272M
length16.0
length_AttribLever length
MPN, SKUD2HW-C272M
qtyInStock13
snippetOMRON OCB D2HW-C272M | Microswitch SNAP ACTION; 0.1A/125VAC; 2A/12VDC; SPST-NC; Pos:
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice14.86
tierPrice24.59
tierPrice34.27
tierPrice44
tierPrice53.76
Type of switchmicroswitch SNAP ACTION
AC contacts rating @R0.1A / 125V AC
DC contacts rating @R2A / 12V DC
Switches featureswith lever with roller simulation
Contacts configurationSPST-NC
Max contact resistance:150m?
Switching methodON-(OFF)
Number of positions2
IP ratingIP67
Leadsdownwards,
Body dimensions18.5x5.3x6.5mm
Mechanical durability1000000 cycles
Operating temperature-40...85?C
Operating Force1.8N
Lever length16mm
Electrical life100000 cycles
Contact platinggold-plated
Manufacturer seriesD2HW-C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMED2HW-C272M11311 @ $4.86, 5 @ $4.59, 20 @ $4.27, 100 @ $4.00, 500 @ $3.76
