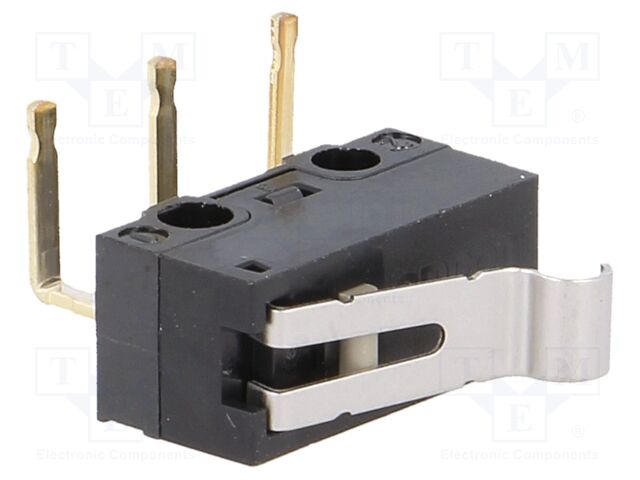

OMRON OCB D2F-01L3-A | Microswitch SNAP ACTION; 3A/125VAC; 0.1A/30VDC; SPDT; ON-(ON)

OMRON OCB . D2F-01L3-A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches SNAP ACTION
DimensionUnitmm
Extra Product NameOMRON OCB D2F-01L3-A | Microswitch SNAP ACTION; 3A/125VAC; 0.1A/30VDC; SPDT; ON-(ON)
atoms, moq, multiple, tierMinQty1, Stable positions number1
jsonUrlData99f4b27a04fbc99f191047273dd8b5ae.
jsonUrlData229efee2f73b7ba125ef9
keywordsOMRON OCB, D2F-01L3-A, Switches and Indicators, Microswitches, Microswitches SNAP ACTION
length10.0
length_AttribLever length
MPN, SKUD2F-01L3-A
qtyInStock226
snippetOMRON OCB D2F-01L3-A | Microswitch SNAP ACTION; 3A/125VAC; 0.1A/30VDC; SPDT; ON-(ON
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice11.36
tierPrice21.25
tierPrice31.16
tierPrice41.05
tierPrice51.03
Type of switchmicroswitch SNAP ACTION
AC contacts rating @R3A / 125V AC
DC contacts rating @R0.1A / 30V DC
Switches featureswith lever with roller simulation
Contacts configurationSPDT
Switching methodON-(ON)
Number of positions2
IP ratingIP40
Leadsangled,
Body dimensions12.8x5.8x6mm
Mechanical durability1000000 cycles
Operating temperature-25...85?C
Operating Force1.47N
Lever length10mm
Terminal pitch5.08mm
Manufacturer seriesD2F

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMED2F-01L3-A122611 @ $1.36, 5 @ $1.25, 20 @ $1.16, 100 @ $1.05, 500 @ $1.03
