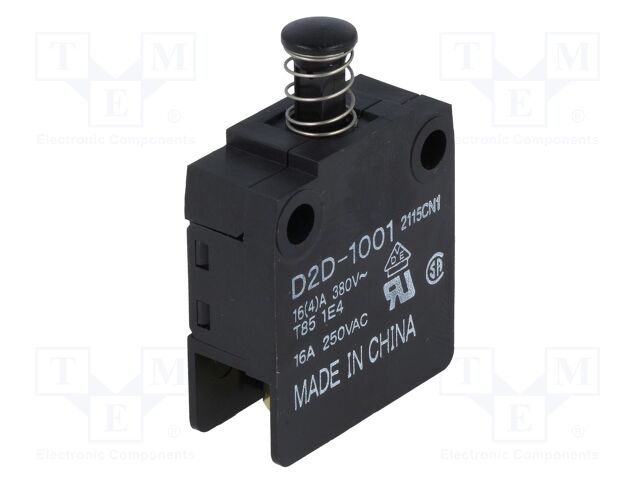

OMRON OCB D2D-1001 | Switch: door; Pos: 2; SPST-NO; 16A/250VAC; black; screw type; D2D

OMRON OCB . D2D-1001

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Push Button Switches
CategoryL3Door Switches
DimensionUnitmm
Extra Product NameOMRON OCB D2D-1001 | Switch: door; Pos: 2; SPST-NO; 16A/250VAC; black; screw type; D2D
atoms, moq, multiple, Stable positions number1
diameter, length, width36.7
jsonUrlData3ffae5ca4b19cb7345adc1a52295cf79.
jsonUrlData2b86bc3a4f2a75b994839
keywordsOMRON OCB, D2D-1001, Switches and Indicators, Push Button Switches, Door Switches
length_Attrib, width_AttribMounting hole diameter
MPN, SKUD2D-1001
qtyInStock0
snippetOMRON OCB D2D-1001 | Switch: door; Pos: 2; SPST-NO; 16A/250VAC; black; screw type; D2
Type of switchdoor
Number of positions2
Contacts configurationSPST-NO
AC contacts rating @R16A / 250V AC
Actuator colourblack
Leadsconnectors 6,35x0,8mm
Switching methodOFF-(ON)
Operating temperature-25...85?C
Mountingscrew type
Mounting hole diameter36.7x13.5mm
Panel thickness1...2.5mm
Body materialpolyamide
Switches featureswith pin
Button shapeprominent,
Manufacturer seriesD2D
