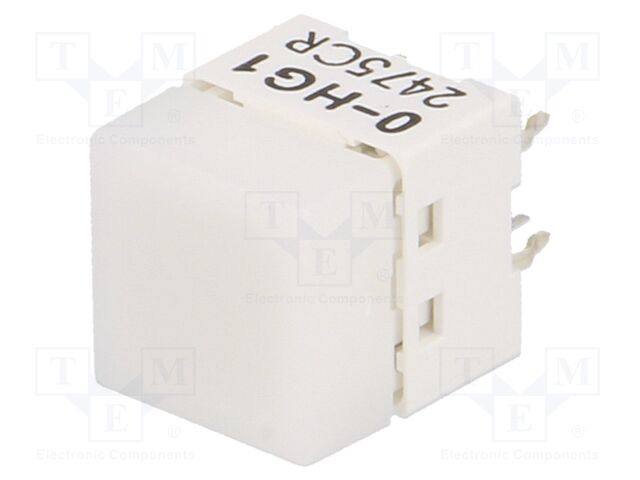

OMRON OCB B3W-9000-HG1N | Switch: keypad; Pos: 2; SPST-NO; 0.05A/24VDC; white; LED; green; THT

OMRON OCB . B3W-9000-HG1N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Push Button Switches
CategoryL3Keypad Switches
DimensionUnitmm
Extra Product NameOMRON OCB B3W-9000-HG1N | Switch: keypad; Pos: 2; SPST-NO; 0.05A/24VDC; white; LED; green; THT
atoms, moq, multiple, tierMinQty1, Stable positions number1
height11.0
height_AttribButton height
jsonUrlDatad873224635e304b8d4a3c4cc0d839259.
jsonUrlData29828686d74ef945c48a1
keywordsOMRON OCB, B3W-9000-HG1N, Switches and Indicators, Push Button Switches, Keypad Switches
MPN, SKUB3W-9000-HG1N
qtyInStock0
snippetOMRON OCB B3W-9000-HG1N | Switch: keypad; Pos: 2; SPST-NO; 0.05A/24VDC; white; LED; green; TH
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice15.04
tierPrice24.75
tierPrice34.46
tierPrice44.18
tierPrice53.88
Type of switchkeypad
Number of positions2
Contacts configurationSPST-NO
DC contacts rating @R0.05A / 24V DC
Actuator colourwhite
IlluminationLED
Backlight colourgreen
MountingTHT
Leadsfor PCB,
Switching methodOFF-(ON)
Operating temperature-25...70?C
Body dimensions10x10mm
Operating Force1.57N
Max contact resistance:100m?
Min insulation resistance100M?
Key stroke0.25mm
Button shapesquare
Terminal pitch6.5x4.5mm
Button height11mm
Manufacturer seriesB3W-9

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEB3W-9000-HG1N111 @ $5.04, 5 @ $4.75, 20 @ $4.46, 100 @ $4.18, 500 @ $3.88
