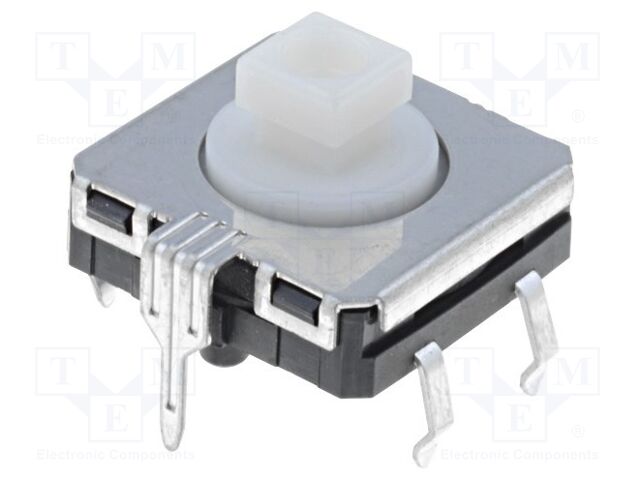

OMRON OCB B3W-4150 | Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 1.96N

OMRON OCB . B3W-4150

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Switches and Indicators
CategoryL2Microswitches
CategoryL3Microswitches TACT
DimensionUnitmm
Extra Product NameOMRON OCB B3W-4150 | Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 1.96N
atoms, moq, multiple, Stable positions number1
height7.3
height_AttribButton height
jsonUrlDatae5b0a0f5679b1726a4d714464a74e109.
jsonUrlData2f56eaad1f21644458740
keywordsOMRON OCB, B3W-4150, Switches and Indicators, Microswitches, Microswitches TACT
MPN, SKUB3W-4150
qtyInStock0
snippetOMRON OCB B3W-4150 | Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 1.96
Type of switchmicroswitch TACT
Contacts configurationSPST-NO
Number of positions2
DC contacts rating @R0.05A / 24V DC
MountingTHT
Illuminationnone
Operating Force1.96N
Body dimensions12x12mm
Button height7.3mm
Switching methodOFF-(ON)
Terminal pitch5x12mm
Operating temperature-25...70?C
Button shapesquare
Actuator colourwhite
Key stroke0.3mm
Leadsfor PCB,
Max contact resistance:100m?
Min insulation resistance100M?
Mechanical durability3000000 cycles
Related itemsB32-1210,
Switches featureswith ground terminal
Manufacturer seriesB3W

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEB3W-415011
