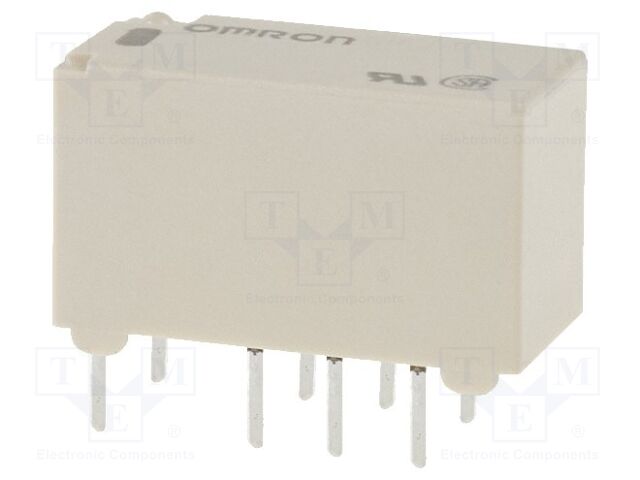

OMRON OCB G6SU-2 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB

OMRON OCB . G6SU-2 5VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6SU-2 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
atoms, moq, multiple1
jsonUrlData8e1194f6a05802a53a038e3803cf9ecf.
jsonUrlData2b73d6284bcd108632d90
keywordsOMRON OCB, G6SU-2 5VDC, G6SU-2-5DC
MPNG6SU-2 5VDC
qtyInStock0
SKUG6SU-2-5DC
snippetOMRON OCB G6SU-2 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PC
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage5V DC
Contact current max2A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R2A / 30V DC
Switched voltagemax. 220V DC,
Relay variantbistable,
MountingPCB
Coil resistance250?
Operate time, Release time4ms
Body dimensions14.8x7.3x9.2mm
Coil power consumption100mW
Operating temperature-40...85?C
Relay seriesG6S
Contact resistance75m?
Terminal pitch2.54mm
Coil current20mA
Designsingle coil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6SU-2-5DC11
