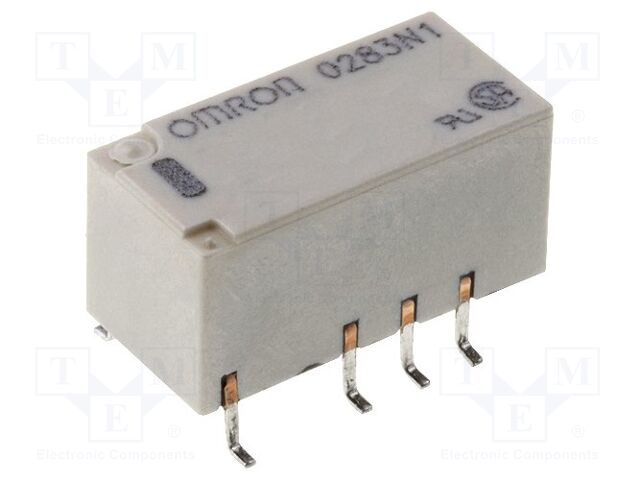

OMRON OCB G6S-2F-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; SMD

OMRON OCB . G6S-2F-Y 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6S-2F-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; SMD
atoms, moq, multiple, tierMinQty11
jsonUrlData7940ef417aabcd26c4522512db4c98cc.
jsonUrlData2e60de0c5cbac3ab433fa
keywordsOMRON OCB, G6S-2F-Y 24VDC, G6S-2F-Y-24DC
MPNG6S-2F-Y 24VDC
qtyInStock0
SKUG6S-2F-Y-24DC
snippetOMRON OCB G6S-2F-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; SM
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice16.26
tierPrice25.69
tierPrice34.41
tierPrice44.13
tierPrice53.84
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage24V DC
Contact current max2A
AC contacts rating @R0.5A / 125V AC
DC contacts rating @R2A / 30V DC
Switched voltagemax. 220V DC,
Relay variantsubminiature
MountingSMD
Coil resistance2504?
Operate time, Release time4ms
Body dimensions14.8x7.3x9.2mm
Coil power consumption200mW
Operating temperature-40...85?C
Relay seriesG6S
Contact resistance75m?
Terminal pitch2.54mm
Coil current9.6mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6S-2F-Y-24DC111 @ $6.26, 5 @ $5.69, 25 @ $4.41, 100 @ $4.13, 500 @ $3.84
