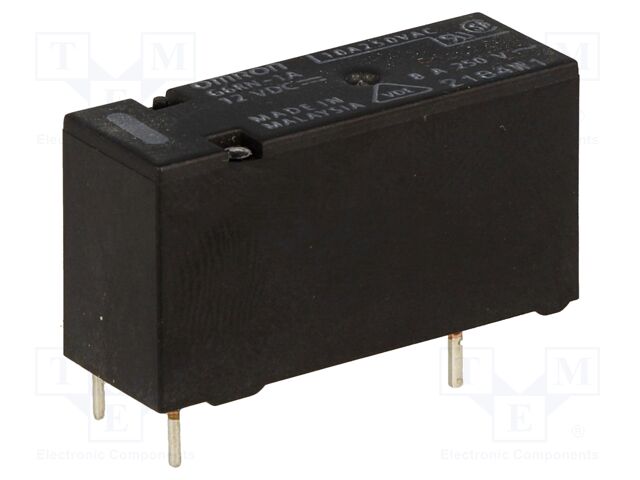

OMRON OCB G6RN-1A 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 8A

OMRON OCB . G6RN-1A 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6RN-1A 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 8A
atoms, moq, multiple, tierMinQty11
jsonUrlData80d8b1fae098fb5ac6c272f309b9ddf9.
jsonUrlData2fca5485209f344bb63be
keywordsOMRON OCB, G6RN-1A 12VDC, G6RN-1A-12
MPNG6RN-1A 12VDC
qtyInStock64
SKUG6RN-1A-12
snippetOMRON OCB G6RN-1A 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 8
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice12.08
tierPrice21.9
tierPrice31.47
tierPrice41.38
tierPrice51.28
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max8A
AC contacts rating @R8A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingPCB
Coil resistance655?
Operate time15ms
Body dimensions28.5x10x15mm
Release time5ms
Coil power consumption220mW
Operating temperature-40...85?C
Relay seriesG6RN
Terminal pitch5.1mm
Coil current18.3mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6RN-1A-1216411 @ $2.08, 5 @ $1.90, 20 @ $1.47, 100 @ $1.38, 500 @ $1.28
