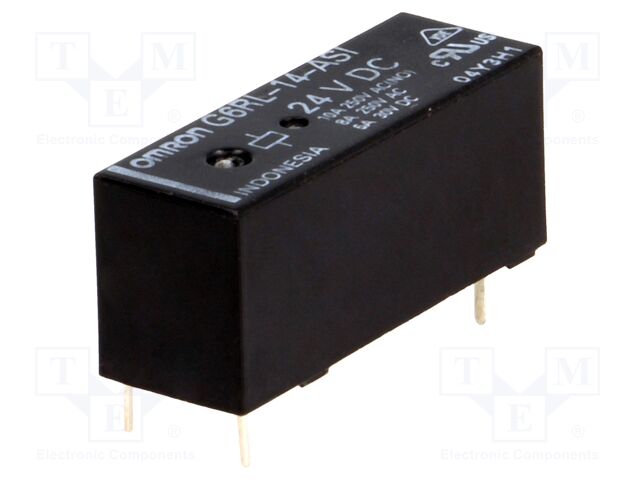

OMRON OCB G6RL-14-ASI 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A

OMRON OCB . G6RL-14-ASI 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6RL-14-ASI 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
atoms, moq, multiple1
jsonUrlDataa2b91fad43abb18d6c4fc0c1906d16a0.
jsonUrlData236e4a2861a4f5d0cebbd
keywordsOMRON OCB, G6RL-14-ASI 24VDC, G6RL-14-ASI-24DC
MPNG6RL-14-ASI 24VDC
qtyInStock0
SKUG6RL-14-ASI-24DC
snippetOMRON OCB G6RL-14-ASI 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage24V DC
Contact current max10A
AC contacts rating @R8A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingPCB
Coil resistance1912?
Operate time10ms
Body dimensions28.5x10x12.3mm
Release time5ms
Coil power consumption300mW
Operating temperature-40...85?C
Relay seriesG6RL
Contact resistance100m?
Contact materialAgSnIn
Terminal pitch3.2mm
Coil current12.6mA
Enclosure descriptionhermetic seal
