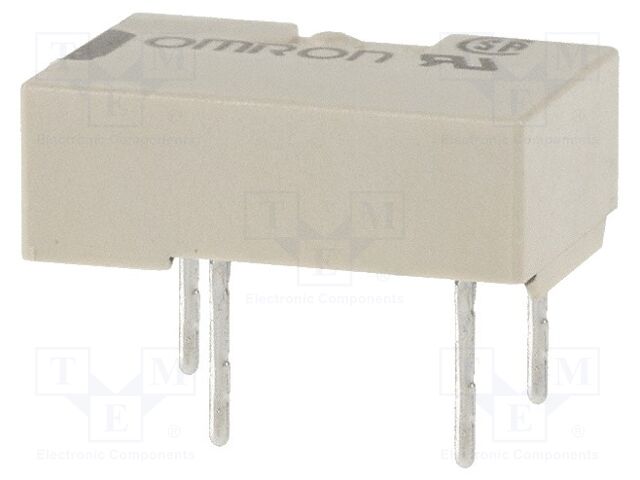

OMRON OCB G6L-1P 3VDC | Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; Icontacts max: 1A

OMRON OCB . G6L-1P 3VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6L-1P 3VDC | Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; Icontacts max: 1A
atoms, moq, multiple1
jsonUrlData9e277d6c32e8bac6e22f829339cd1e9d.
jsonUrlData2bb34f9ab5dcfbe779252
keywordsOMRON OCB, G6L-1P 3VDC, G6L-1P-3DC
MPNG6L-1P 3VDC
qtyInStock0
SKUG6L-1P-3DC
snippetOMRON OCB G6L-1P 3VDC | Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; Icontacts max: 1
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage3V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 24V DC
Switched voltagemax. 60V DC,
Relay variantsubminiature
MountingPCB
Coil resistance50?
Operate time, Release time5ms
Body dimensions10.6x7x4.1mm
Coil power consumption180mW
Operating temperature-40...70?C
Relay seriesG6L
Contact resistance100m?
Terminal pitch5.08mm
Coil current60mA
