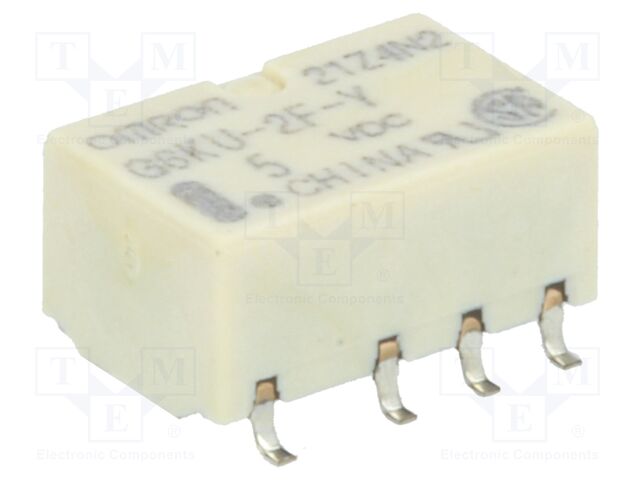

OMRON OCB G6KU-2F-Y 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; SMD

OMRON OCB . G6KU-2F-Y 5VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6KU-2F-Y 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; SMD
atoms, moq, multiple, tierMinQty11
jsonUrlDatac9899a1d7a8b00888ea4d0303487d123.
jsonUrlData2856b03dcfb078e0cf276
keywordsOMRON OCB, G6KU-2F-Y 5VDC, G6KU-2F-Y-5DC
MPNG6KU-2F-Y 5VDC
qtyInStock, tierMinQty5500
SKUG6KU-2F-Y-5DC
snippetOMRON OCB G6KU-2F-Y 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; SM
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice15.66
tierPrice25.15
tierPrice34
tierPrice43.74
tierPrice53.48
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage5V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 60V DC,
Relay variantbistable,
MountingSMD
Coil resistance237?
Operate time, Release time3ms
Body dimensions10x6.5x5.2mm
Coil power consumption100mW
Operating temperature-40...70?C
Relay seriesG6K
Contact resistance100m?
Terminal pitch3.2mm
Coil current21.1mA
Designsingle coil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6KU-2F-Y-5DC150011 @ $5.66, 5 @ $5.15, 25 @ $4.00, 100 @ $3.74, 500 @ $3.48
