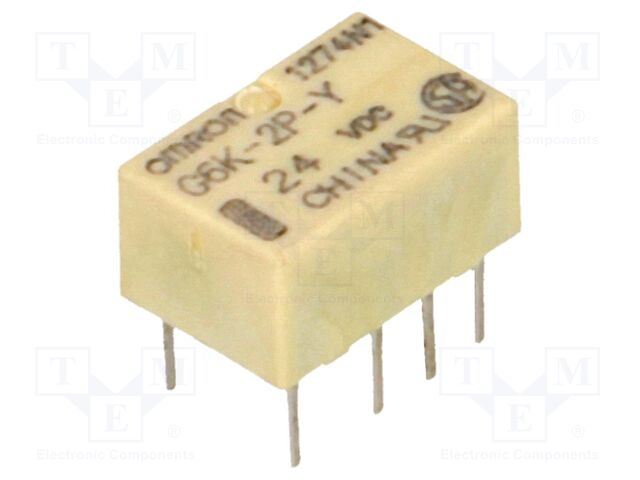

OMRON OCB G6K-2P-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; PCB

OMRON OCB . G6K-2P-Y 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6K-2P-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlData667428e36b2f3737a9f7ec9e5744ad04.
jsonUrlData21c7a7181b4322ce80241
keywordsOMRON OCB, G6K-2P-Y 24VDC, G6K-2P-Y-24DC
MPNG6K-2P-Y 24VDC
qtyInStock, tierMinQty5500
SKUG6K-2P-Y-24DC
snippetOMRON OCB G6K-2P-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice15.36
tierPrice24.88
tierPrice33.78
tierPrice43.53
tierPrice53.29
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage24V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 60V DC,
Relay variantsubminiature
MountingPCB
Coil resistance5.22k?
Operate time, Release time3ms
Body dimensions10x6.5x5.2mm
Coil power consumption100mW
Operating temperature-40...70?C
Relay seriesG6K
Contact resistance100m?
Terminal pitch2.54mm
Coil current4.6mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6K-2P-Y-24DC150011 @ $5.36, 5 @ $4.88, 25 @ $3.78, 100 @ $3.53, 500 @ $3.29
