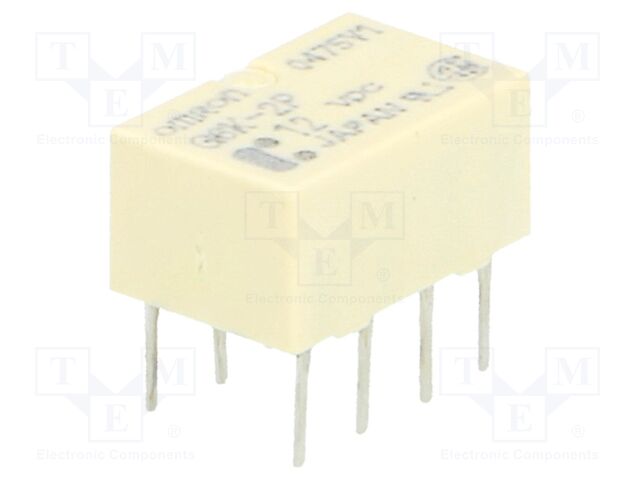

OMRON OCB G6K-2P 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; PCB

OMRON OCB . G6K-2P 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6K-2P 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlDatad69254f8cfbf09ec0e23735b404f111a.
jsonUrlData20611a6cbbda42bd352b1
keywordsOMRON OCB, G6K-2P 12VDC, G6K-2P-12DC
MPNG6K-2P 12VDC
qtyInStock0
SKUG6K-2P-12DC
snippetOMRON OCB G6K-2P 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 1A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice14.32
tierPrice23.94
tierPrice33.06
tierPrice42.85
tierPrice52.65
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage12V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 60V DC,
Relay variantsubminiature
MountingPCB
Coil resistance1315?
Operate time, Release time3ms
Body dimensions10x6.5x5.2mm
Coil power consumption100mW
Operating temperature-40...70?C
Relay seriesG6K
Contact resistance100m?
Terminal pitch2.54mm
Coil current9.1mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6K-2P-12DC111 @ $4.32, 5 @ $3.94, 25 @ $3.06, 100 @ $2.85, 500 @ $2.65
