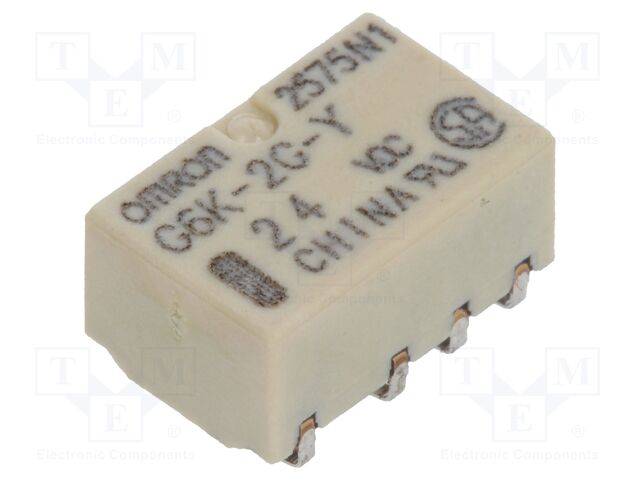

OMRON OCB G6K-2G-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; SMD

OMRON OCB . G6K-2G-Y 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6K-2G-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; SMD
atoms, moq, multiple, tierMinQty11
jsonUrlDataa5a1808972b7ec373675704ab1b93bee.
jsonUrlData200a4bab67f4f2312bdf2
keywordsOMRON OCB, G6K-2G-Y 24VDC, G6K-2G-Y-24DC
MPNG6K-2G-Y 24VDC
qtyInStock0
SKUG6K-2G-Y-24DC
snippetOMRON OCB G6K-2G-Y 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; SM
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice14.8
tierPrice24.36
tierPrice33.39
tierPrice43.16
tierPrice52.94
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage24V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 60V DC,
Relay variantsubminiature
MountingSMD
Coil resistance5.22k?
Operate time, Release time3ms
Body dimensions10x6.5x5.2mm
Coil power consumption100mW
Operating temperature-40...70?C
Relay seriesG6K
Contact resistance100m?
Terminal pitch3.2mm
Coil current4.6mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6K-2G-Y-24DC111 @ $4.80, 5 @ $4.36, 25 @ $3.39, 100 @ $3.16, 500 @ $2.94
