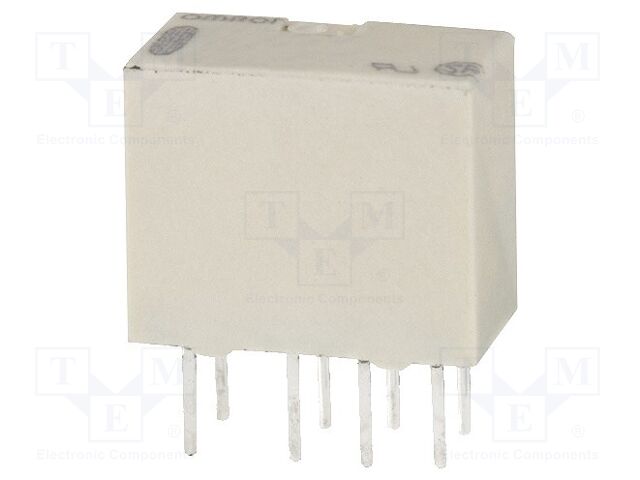

OMRON OCB G6J-2P-Y 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; PCB

OMRON OCB . G6J-2P-Y 5VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6J-2P-Y 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; PCB
atoms, moq, multiple, tierMinQty11
jsonUrlDataa2e2dfde2f1ce914aec556efadfc42fb.
jsonUrlData2b1d7085fc0f4d40e34a9
keywordsOMRON OCB, G6J-2P-Y 5VDC, G6J-2P-Y-5DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6J-2P-Y 5VDC
qtyInStock95
SKUG6J-2P-Y-5DC
snippetOMRON OCB G6J-2P-Y 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; PC
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice13.65
tierPrice23.28
tierPrice32.83
tierPrice42.65
tierPrice52.46
Type of relayelectromagnetic
Contacts configurationDPDT
Rated coil voltage5V DC
Contact current max1A
AC contacts rating @R0.3A / 125V AC
DC contacts rating @R1A / 30V DC
Switched voltagemax. 110V DC,
Relay variantsubminiature
MountingPCB
Coil resistance173.1?
Operate time, Release time3ms
Body dimensions10.6x5.7x9mm
Coil power consumption140mW
Operating temperature-40...85?C
Relay seriesG6J-Y
Contact resistance100m?
Terminal pitch2.2mm
Coil current28.9mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6J-2P-Y-5DC19511 @ $3.65, 5 @ $3.28, 25 @ $2.83, 100 @ $2.65, 500 @ $2.46
