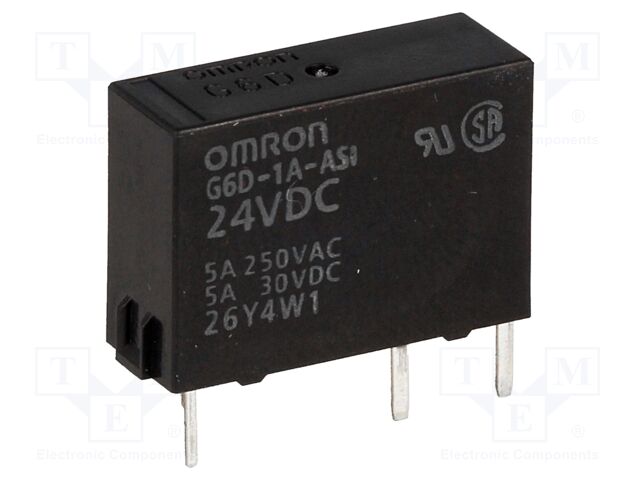

OMRON OCB G6D-1A-ASI 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A

OMRON OCB . G6D-1A-ASI 24VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G6D-1A-ASI 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5A
atoms, moq, multiple, tierMinQty11
jsonUrlData4f39be28e2a92afea601792cedc7185d.
jsonUrlData2ac55c2f3995cc90b8810
keywordsOMRON OCB, G6D-1A-ASI 24VDC, G6D-1A-ASI-24DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG6D-1A-ASI 24VDC
qtyInStock6912
SKUG6D-1A-ASI-24DC
snippetOMRON OCB G6D-1A-ASI 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 5
tierMinQty25
tierMinQty325
tierMinQty4100
tierPrice12.62
tierPrice22.49
tierPrice32.36
tierPrice42.23
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage24V DC
Contact current max5A
AC contacts rating @R5A / 250V AC
DC contacts rating @R5A / 30V DC
Switched voltagemax. 30V DC,
Relay variantminiature
MountingPCB,
Coil resistance2.88k?
Operate time10ms
Body dimensions17.5x6.5x12.5mm
Release time5ms
Coil power consumption200mW
Operating temperature-25...70?C
Relay seriesG6D
Contact resistance100m?
Terminal pitch5.08mm
Coil current8.3mA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG6D-1A-ASI-24DC1691211 @ $2.62, 5 @ $2.49, 25 @ $2.36, 100 @ $2.23
